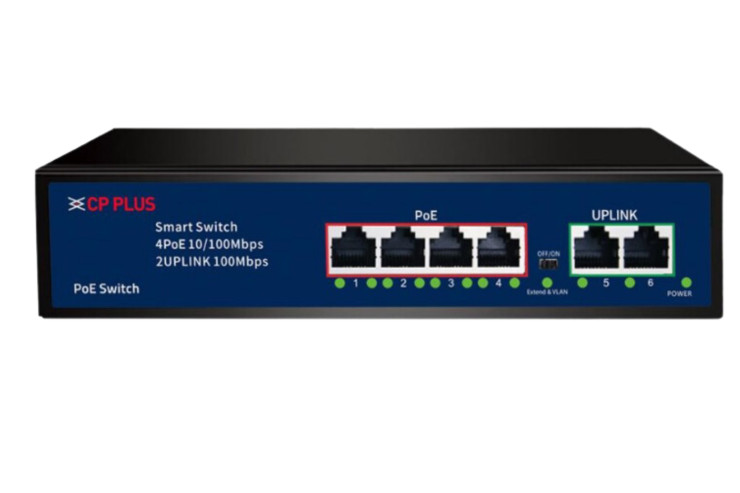

CP-DNW-HPU4H2-48 - Supreme Security System

6 Ports Switch with 4 PoE Ports & 2 Uplink Ports

Category: Switches

Sub Category: PoE

SKU: 12435

4, 100Mbps; RJ45 ports, Supports Max. 30W Output of Single PoE Port
Support IEEE802.3i/802.3u/802.3x
2, 100Mbps, Transmission Distance: 0-100m
Easy and safe installation

Network Port	4, 100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance:0~250m
Uplink Ports	2, 100Mbps, Transmission Distance: 0-100m
Switch Capacity	1.2 Gbps Full Duplex
Forwarding Rates	0.1488 Mbps/port
PoE Standard	IEEE802.3i/802.3u/802.3x
PoE Power Supply	1/2(+),3/6(-)
Transmission Distance	0~250m
MAC Address List	2k
Lightning Protection	n/a
PoE Power Budget	48W
ESD Protection	Air discharge: 1.5KV Contact discharge: 1.5KV
Power Consumption	<5W
LED light	Light on: Powering Light off: No Power DIP Switch Light on - VLAN & Extend mode Light off - Normal mode
Power Source	Input: 100-240V AC, 50/60Hz built-in power supply
Power Light	Green light flash slowly: Searching for device Red light on: Powering but data disconnected Green light flash quickly: Data Transmitting
Working Temp	-10°C ~50°C
Humidity	10% - 95%, non-condensing
Storage Temperature	-40°C ~70°C
Dimension	202mm x 140mm x 45mm
