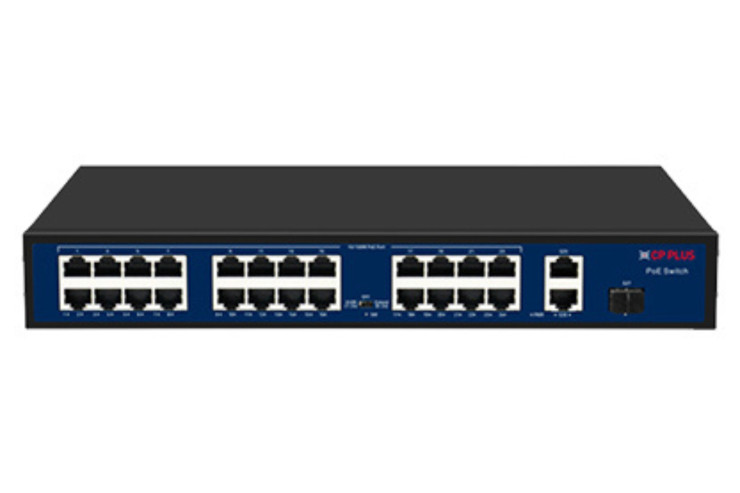

CP-DNW-HPU24G2F1-30 - Supreme Security System

27 Ports Switch with 24 PoE Ports & 2 Gigabit + 1 SFP Uplink Port

Category: Switches

Sub Category: PoE

SKU: 24687

Port 1-24 support PoE, Max. 30W Output of Single PoE Port
Support IEEE802.3/802.3u/802.3z/802.3ab/802.3x
2, 1000Mbps & 1 Gigabit SFP Uplink port; Transmission Distance: Default: 0-100m
Easy and safe installation

Uplink Ports	2, 1000Mbps & 1 Gigabit SFP Uplink port; Transmission Distance: Default: 0-100m
Switch Capacity	10.8 Gbps (non-blocking)
PoE Power Budget	300W
Surge Protection	Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 4KV Differential mode/Power board: 2KV
ESD	Air discharge: 8KV Contact discharge: 6KV
Ethernet Port Light	Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
Network Port	27
Transmission Distance	0-100m/1000Mbps or Port 9-24 Max. 250m/10Mbps via Cat.5e or more under Extend
PoE Ports	Port 1-24 support PoE, Max. 30W Output of Single PoE Port
PoE Power Supply	1/2(+),3/6(-)
PoE Standard	IEEE802.3af, IEEE802.3at
Packet Forwarding Rate	8.035 Mpps
MAC Address List	2K
Power Source	Built-in Power Supply Input: 100-240V AC, 50/60Hz
Power Consumption	<5W
Operating Temperature	-20°C ~ 45°C
Humidity	10%-95% , non-condensing
Storage Temperature	-45°C ~ 85°C
Dimension	320mm x 207mm x 45mm
