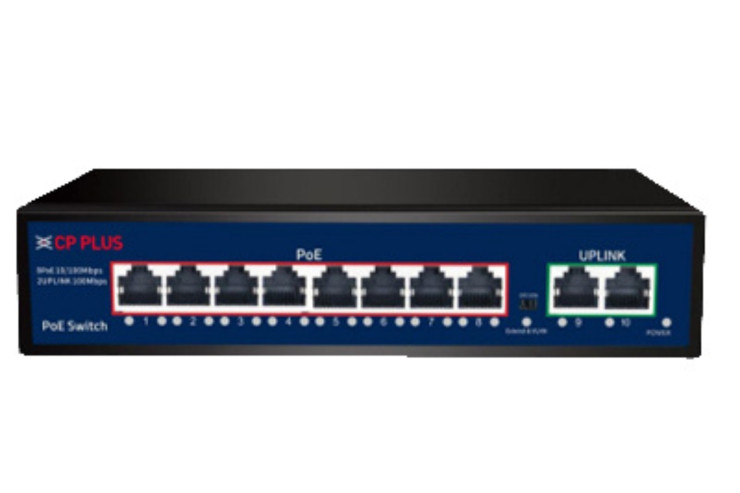

CP-DNW-HP8H2-96-V2 - Supreme Security System

8 Port PoE Switch with 2 Uplink Port

Category: Switches

Sub Category: PoE

SKU: 28616

8 port, 100Mbps, RJ45 ports; 30W Max. Output of Single PoE Port
Support IEEE802.3i/802.3u/802.3x
2 Uplink port, 100Mbps with Transmission distance of 0-100m
Easy and safe installation

Network Port	10 (8+2) Port
Switch Capacity	2 Gbps Full duplex
Uplink Ports	2 Uplink Port, 100Mbps with Transmission Distance of 0-100m
Transmission Distance	0-100m/100Mbps, Max. 250m/10Mbps via Cat.5e or more under Extend mode
Forwarding Rates	0.1488 Mpps/Port
ESD Protection	Contact discharge 6K, Air discharge 8KV, Per: IEC61000-4-2
Ethernet Port Light	Green Light (Quick Flash- Data Transmitting, Slow Flash- Searching For Device), Red LightPowering but data disconnected
LED light	Light on - VLAN/Extended mode, Light Off - Normal Mode
Lightning Protection	Support
MAC Address List	2K
Packet Buffer	n/a
PoE Ports	8 Port with 100Mbps, RJ45 ports, 30W Max. Output of a Single PoE Port with Transmission Distance of 0 –250m
PoE Power Budget	96W
PoE Power Supply	1/2(+),3/6(-)
Power Consumption	<5W
Operating Temperature	-10°C ~ 50°C
Operating Humidity	10%-95% , non-condensing
Storage Temperature	-40°C ~ 70°C
