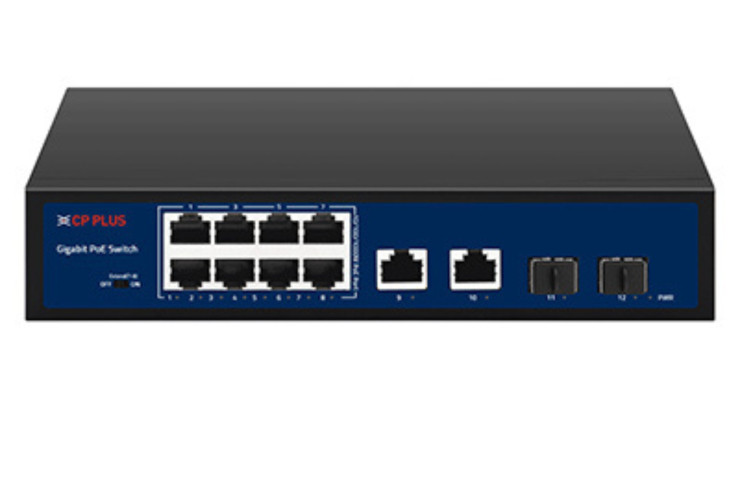

CP-DNW-GPU8G2F2-96 - Supreme Security System

10 Ports Switch with 8 Gigabit PoE Ports & 2 Gigabit Uplink Ports, 2 SFP Ports

Category: Switches

Sub Category: PoE

SKU: 24687

8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port, 2 x 1000Mbps RJ45 ports 2 x 1000Mbps SFP Port
Supports IEEE802.3i/802.3u/802.3x/802.3af/802.3ab/ IEEE 802.3z
Transmission Distance: default: 0-100m
Easy and safe installation

Switch Capacity	24Gbps Full duplex
Uplink Ports	2 x 1000Mbps RJ45 ports + 2 x 1000Mbps SFP ports
PoE Power Budget	96W
Surge Protection	Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 2K Differential mode/Power board: 2KV
ESD	Air discharge: 8KV Contact discharge: 6KV
Ethernet Port Light	Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
Network Port	12
Transmission Distance	0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode
PoE Ports	8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
PoE Power Supply	1/2(+),3/6(-)
PoE Standard	IEEE802.3af, IEEE802.3at
Packet Forwarding Rate	1.488Mpps/port
MAC Address List	2K
Power Source	Input: 100-240V AC, 50/60Hz, Bult-in Power Supply
Power Consumption	<5W
Operating Temperature	-10°C~ 50°C
Humidity	10%-95% , non-condensing
Storage Temperature	-40°C~70°C
Dimension	220 x 161 x 44 mm
