CP-DNW-GPU8G2-96 - Supreme Security System

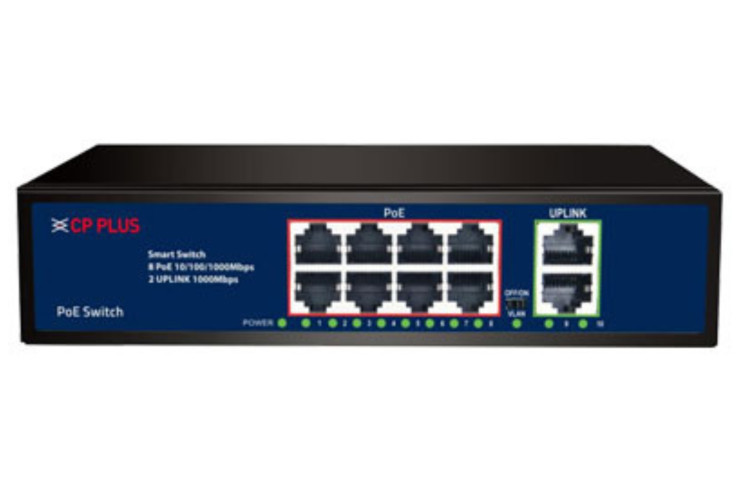

10 Ports Switch with 8 Gigabit PoE Ports & 2 Gigabit Uplink Ports

Category: Switches

Sub Category: PoE

SKU: 12435

8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Support IEEE802.3i/802.3u/802.3x/802.3af/802.3ab
2, 10/100Mbps; Transmission Distance: 0-100m

Switch Capacity	20Gbps Full duplex
Uplink Ports	2, 1000Mbps; Transmission Distance: 0-100m
PoE Power Budget	96W
Anti-thunder Level	Common mode: 2KV ; Differential mode: 2KV
ESD	Air discharge: 1.5KV ; Contact discharge: 1.5KV
Ethernet Port Light	Light off: Link is disconnected; Red light on: Powering but data disconnected ; Light flash quickly: Data Transmitting
Network Port	10
Transmission Distance	0-100m/100 Mbps
PoE Ports	8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance: 0~100
PoE Power Supply	1/2(+), 3/6(-)
PoE Standard	IEEE802.3af, IEEE802.3at
Packet Forwarding Rate	1.488Mpps/port
MAC Address List	2K
Power Source	Built-in Power Supply, Input: 110-264V AC, 50/60Hz
Power Consumption	<5W
Operating Temperature	-10°C~ -50°C
Humidity	10%-95% , non-condensing
Storage Temperature	-40°C~70°C
Dimension	220mm x 140mm x 45mm
