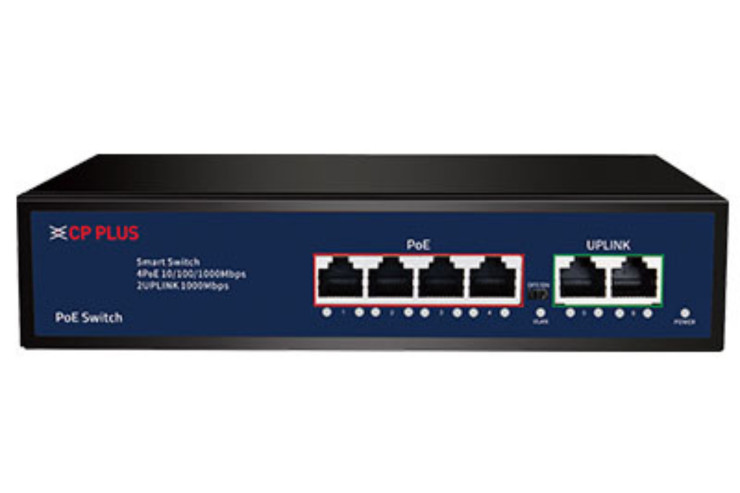

CP-DNW-GPU4G2-48 - Supreme Security System

6 Ports Switch with 4 Gigabit PoE Ports & 2 Gigabit Uplink Ports

Category: Switches

Sub Category: PoE

SKU: 13156

4, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Support IEEE802.3i/802.3u/802.3x/802.3ab
Uplink Port: 2, 1000Mbps; Transmission Distance: 0-100m
PoE Power Budget: 48W

Switch Capacity	12 Gbps Full duplex
Uplink Ports	2, 1000Mbps; Transmission Distance: 0-100m
PoE Power Budget	48W
Anti-thunder Level	Common mode: 2KV Differential mode: 2KV
ESD	Air discharge: 1.5KV Contact discharge: 1.5KV
Ethernet Port Light	Light off: Link is disconnected Red light on: Powering but data disconnected Light flash quickly: Data Transmitting
Network Port	6
Transmission Distance	0-100m/100 Mbps
PoE Ports	4, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance:0~100m
PoE Power Supply	1/2(+), 3/6(-)
PoE Standard	IEEE802.3af, IEEE802.3at
Packet Forwarding Rate	1.488Mpps/port
MAC Address List	2K
Power Source	Built-in Power Supply, Input: 110-264V AC, 50/60Hz
Power Consumption	<5W
Operating Temperature	-10°C~ -50°C
Humidity	10%-95% , non-condensing
Storage Temperature	-40°C~70°C
Dimension	202mm x 140mm x 45mm (L x W x H)
