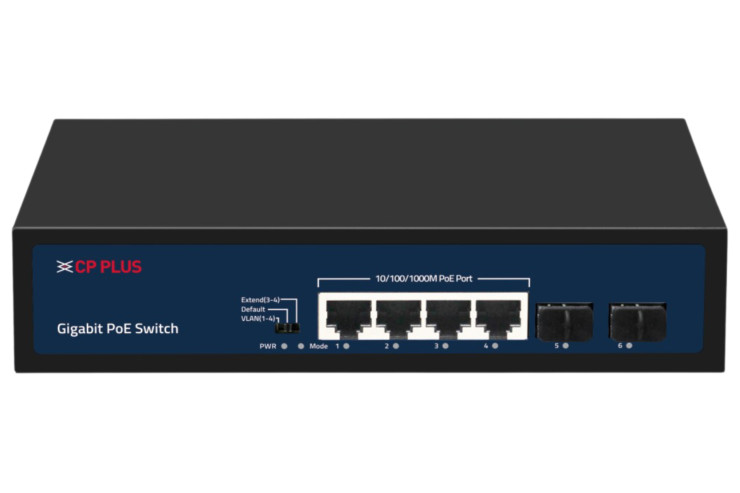

CP-DNW-GPU4F2-65 - Supreme Security System

6 Ports Switch with 4 Gigabit PoE Ports & 2 SFP Gigabit Uplink Ports

Category: Switches

Sub Category: PoE

SKU: 32115

4, 100/1000Mbps; RJ45 ports, port 1 supports Max. 60W, and other ports supports Max. 30W Output of Single PoE Port
Support IEEE802.3/802.3u/802.3x/802.3z/802.3ab
2, 1000Mbps, SFP Port, Transmission Distance: 0-100m
Easy and safe installation

Switch Capacity	12 Gbps (Non Blocking)
Uplink Ports	2, 1000Mbps, SFP Port, Transmission Distance: 0-100m
PoE Power Budget	65W
Anti-thunder Level	Power board: 2KV; Network Port - Not supported
ESD	n/a
Ethernet Port Light	Power board: 2KV; Network Port - Not supported
Network Port	6
Transmission Distance	Default & VLAN mode: 0-100m/1000Mbps, Extended mode (cat 5 or above UTP) Port 1-2: 0-100m/1000Mbps, Port 3-4: Max. 250m/10Mbps
PoE Ports	4, 100/1000Mbps RJ45 ports, Port 1 support Max. 60W output, other ports Max. 30W output of Single PoE Port; Transmission distance:0~250meters
PoE Power Supply	1/2(+), 3/6(-)
PoE Standard	IEEE802.3af, IEEE802.3at, IEEE802.3bt
Packet Forwarding Rate	1.488 Mbps/port
MAC Address List	2K
Power Source	Input: 100-240V AC, 50/60Hz, 52V DC 1.25A built-in power supply
Power Consumption	<5W
Operating Temperature	-20°C ~50°C
Humidity	10%-95% , non-condensing
Storage Temperature	-20°C ~50°C
Dimension	200mm x 118mm x 44mm
