Support
Spanning Tree Protocol STP/RSTP/MSTP （ERPS), Support loop detection and
self-healing, support remote loopback monitoring and control (802.3ah
OAM).
Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN.
Support IP address + MAC address + VLAN + port binding, support DHCP Snooping, support IP source and DAI protection.
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w) power supply standard.
Support PoE management, PoE watchdog.
L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, support IGMP Snooping v1/v2.

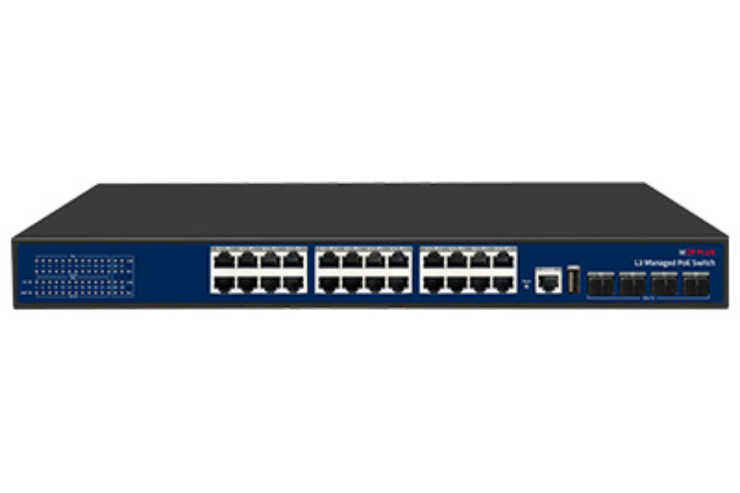

Network Port
24 x 10/100/1000Mbps PoE Port 4 x 10G SFP Port 1 x RJ45 Console Port 1 x USB Port
Network Protocol
IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet (optical fiber) IEEE 802.3az: Energy-efficient Ethernet IEEE 802.3ad: Standard method of performing link aggregation IEEE 802.3x: flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer 2 Qos/Cos protocol (multicast filtering function) related to traffic priority IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP
Switch Capacity
128Gbps
DDR SDRAM
128MB
Flash Memory
16MB
Packet Buffer Memory
12Mbit
Packet Forwarding Rate
95.23Mpps
MAC Address
16K
Jumbo Frame
12K Bytes
VLANs
4096
MTBF
100000 hours
PoE Protocol
IEEE802.3af (15.4W) IEEE802.3at (30W)
Network Medium
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
PWR (Power Indicator)
Light on: Powering Light off: No Power
SYS (System Indicator)
Flash: System booting Light on: System Running
Link/Act Indicator (Port 1-24)
Light on: Link is connected Flash: Data Transmitting Light off: Link is disconnected
PoE Indicator (Port 1-24)
Light on: PoE powering Light off: PoE not powering
Link Indicator (Port 25-28)
Light on: Link is connected Light off: Link is disconnected
Act Indicator (Port 25-28)
Flash: Data Transmitting Light off: No Data Transmitting
PoE Power Budget
Max. 440W
Power Input
100-240VAC, 50/60Hz
Power Consumption
Product Consumption: 33W PoE Budget: 390W Total Power Consumption: 423W
