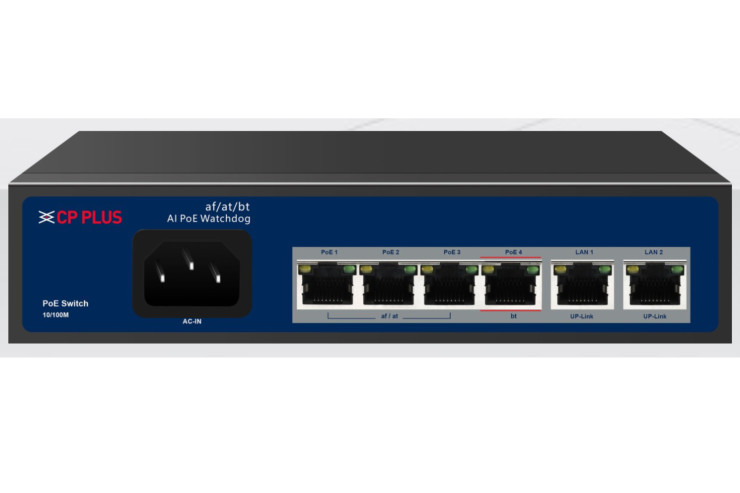

CP-ANW-HP4H2-N65

4EP + 2E 10/100Mbps AI PoE Switch

Category: Switches

Sub Category: PoE

SKU: 35469

Using CAT.5 network patch cords support power for the wireless AP/CPE and IP/PTZ camera.
Networking standard: IEEE802.3af/at/bt.
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
FE ports can support 250 meters long distance transmission automatically
6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
Support 60W PoE receiving power, free of power adapter & simplify power supply
The Max output power of the port is 60W, which is convenient for hi-power equipment
Zero configuration feature power supply is automatically supplied to the adaptive equipment

Network Port	PoE (1~3) :10/100Mbps PoE ports (RJ45) PoE (4) :10/100Mbps PoE port, BT port, Compatible uplink port (RJ45) LAN (1~2):10/100Mbps uplink port (RJ45)
Switch Capacity	Bandwidth 1.2 Gbps
PoE Standard	IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet
Transmission Distance	100Mbps /10Mbps Adaptive MAX 250m
MAC Address List	2K
Lightning Protection	6KV, Per: IEC61000-4-5
PoE Power Budget	65W
Power Source	AC 180~240V Total ≤65W
Working Temp	-30°C ~60°C
Humidity	10%~90% (Non-condensing)
Storage Temperature	-40°C ~70°C
Storage Humidity	5%~90% (Non-condensing)
Dimension	187mm(L) x 139mm(W) x 43mm(H)
