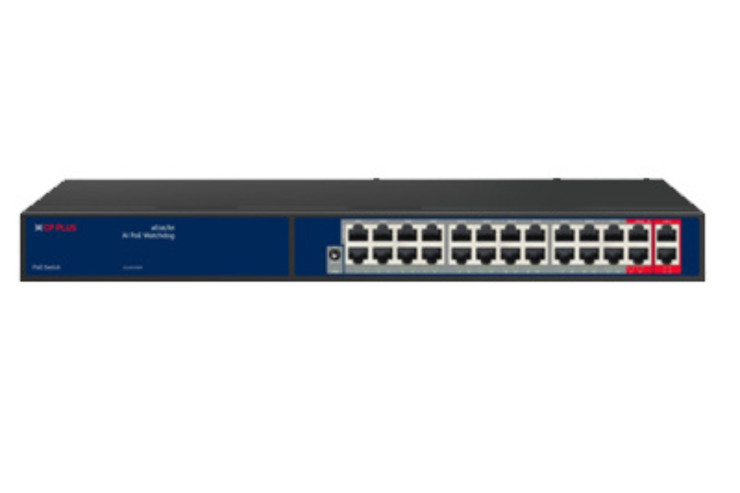

CP-ANW-HP24G2-N30

24EP+2G AI PoE Switch

Category: Switches

Sub Category: PoE

SKU: 24687

Using CAT.5 network patch cords support power for the wireless AP/CPE and PTZ/IP camera
Networking standard: IEEE802.3af/at/bt
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
Upload port automatic flip (Auto MDI / MDIX)
6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
Max. output power of the port is 60 watts, it is convenient for high-power device
Zero configuration feature power supply is automatically supplied to the adaptive equipment

Network Port	PoE (1~22) :10/100Mbps PoE ports (RJ45), PoE (23~24) :10/100/1000Mbps PoE ports, BT port, Compatible uplink ports (RJ45), LAN (1~2):10/100/1000Mbps uplink ports(RJ45)
Switch Capacity	12.4Gbps
Transmission Distance	2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex
ESD Protection	8KV, Per: IEC61000-4-2
MAC Address List	8K
PoE Power Budget	≤300W
Operating Temperature	-30°C~60°C
Operating Humidity	10%~90% non-condensing
Storage Temperature	-40°C ~ 70°C
