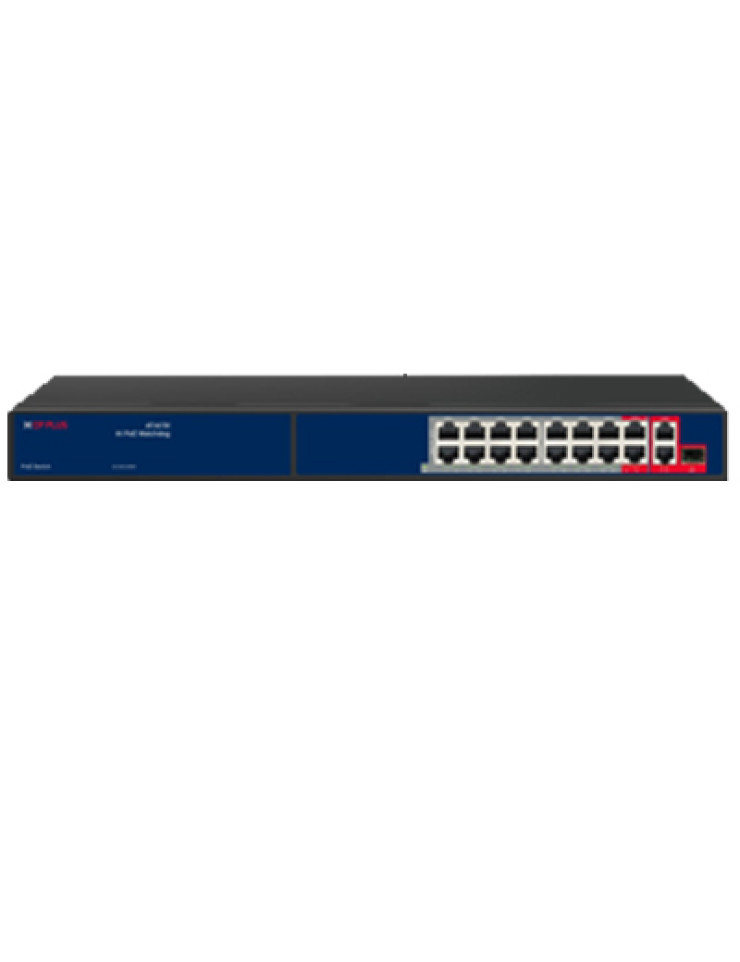

CP-ANW-HP16G2F1-N30

16EP+2G+1SFP AI PoE Switch

Category: Switches

Sub Category: PoE

SKU: 26946

Using CAT.5 network patch cords support power for the wireless AP and IP camera
Networking standard: IEEE802.3af/at/bt
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
Upload port automatic flip (Auto MDI / MDIX)
FE ports can support 250 meters long distance transmission automatically
6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
The port Max power Output is 60 watts, it is convenient for high-power device
Zero configuration feature power supply is automatically supplied to the adaptive equipment

PoE Ports	16 PoE Ports
Network Port	PoE (1~15) :10/100Mbps PoE ports (RJ45),PoE (16):10/100/1000Mbps PoE ports,BT port, Compatible uplink ports (RJ45) ,LAN (1~2):10/100/1000Mbps uplink ports (RJ45),SFP: 10/100/1000Mbps uplink ports (SFP)
LED light	16 x Link/Act LEDs 1 x G1 LED 1 x G2/SFP2 LED 1 x PoE-MAX LED 1 x Power LED
PoE Standard	IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T, IEEE 802.3xFlowControl, IEEE 802.3af/at/bt Power over Ethernet
Switch Capacity	12.8Gbps
Input Voltage	AC 180~240V
MAC Address List	8K
Lightning Protection	6KV, Per: IEC61000-4-5
Operating Temperature	-30°C~60°C
Operating Humidity	10%~90% non-condensing
Storage Temperature	-40°C ~ 70°C
Dimension	430mm x 180mm x 45mm (L x W x H)
