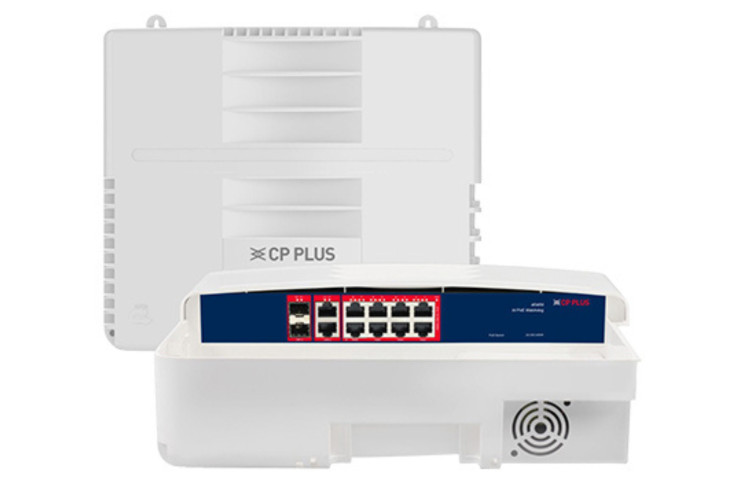

CP-ANW-GPU8G2F2D-N12

8Gigabit PoE Port + 2Gigabit Uplink Port + 2SFP Port Outdoor AI PoE Switch

Category: Switches

Sub Category: PoE

SKU: 12435

Networking standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASET, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
Support 6KV lightning protection, 8KV surge protection
PoE Power Budget : 120W
Support bt 60W High Power (PoE Port 7~8)
Water Resistant AI PoE Switch
AI Watchdog Function
Support IP65 Rating

Network Port	PoE (1~6) : 10/100/1000Mbps PoE ports (RJ45), PoE (7~8) : 10/100/1000Mbps PoE ports (RJ45), Support bt 60W High Power, LAN (1~2): 10/100/1000Mbps uplink port (RJ45), SFP (1~2): 10/100/1000Mbps uplink ports (SFP)
Network Standard	IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
Transmission Rate	2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex
Transmission Distance	130m
MAC Address List	8K
Bandwidth	24Gbps
Network Latency	(10 to 100Mbps): ≤16μs (use the 64byte package size)
Frame Filter & Transmission Rate	14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port, 1488000pps the most for 1000Mbps port
Power Budget	120W
Power Input	AC 180~240V, Total ≤120W
Power Output	PoE 1~6 Port: 1/2(+52V), 3/6 (GND)≤30W, PoE7~8 Port:1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W
Watchdog	Port 1~8
Lightning Protection	6KV, Per: IEC61000-4-5
ESD Protection	8KV, Per: IEC61000-4-2
Operating Temperature	-30°C ~60°C
Weatherproof Standard	IP65
Operating Humidity	10%~90% (Non-condensing)
Storage Temperature	-40°C ~70°C
Storage Humidity	5%~90% (Non-condensing)
Dimension	310mm(L) x 260mm(W) x 100mm(H)
Weight	1.6Kg
Package Content	AC Power Cable, User Manual
