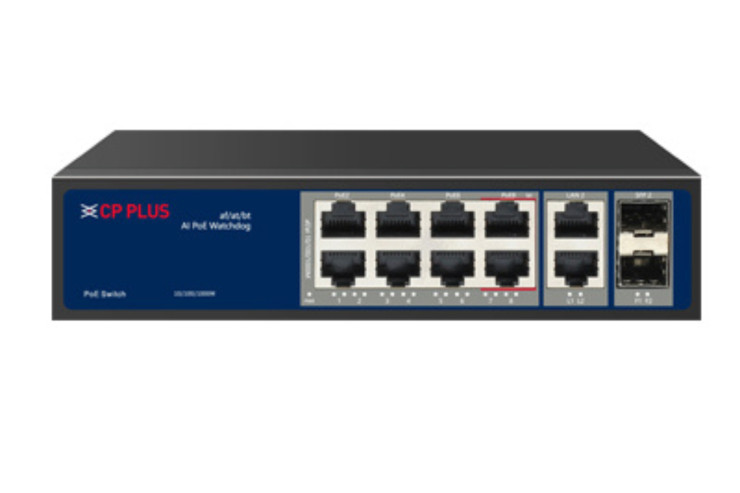

CP-ANW-GPU8G2F2-N12

8GP + 2G + 2SFP 10/100/1000Mbps AI PoE Switch

Category: Switches

Sub Category: PoE

SKU: 13156

Using CAT.5 network patch cords support power for the wireless AP and IP camera.
Networking standard: IEEE802.3af/at/bt.
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
Upload port automatic flip (Auto MDI / MDIX)
Network performance: Store-and-forward
Intelligent power distribution and secure power supply system.
The port power is 60 watts, it is convenient for high-power device
Zero configuration feature power supply is automatically supplied to the adaptive equipment

Network Port	PoE (1~6) :10/100/1000Mbps PoE ports (RJ45) PoE (7~8) :10/100/1000Mbps PoE ports, BT port, Compatible uplink ports (RJ45) LAN (1~2):10/100/1000Mbps uplink port (RJ45) SFP (1~2):10/100/1000Mbp uplink ports (SFP)
Switch Capacity	Bandwidth 24.0 Gbps
PoE Standard	IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet
Transmission Distance	1~100m
MAC Address List	8K
Lightning Protection	6KV
PoE Power Budget	120W
Power Source	AC 180~240V, Total ≤120W
Working Temp	-30°C ~60°C
Humidity	10%~90% (Non-condensing)
Storage Temperature	-40°C ~70°C
Storage Humidity	5%~90% (Non-condensing)
Dimension	187mm(L) x 139mm(W) x 43mm(H)
