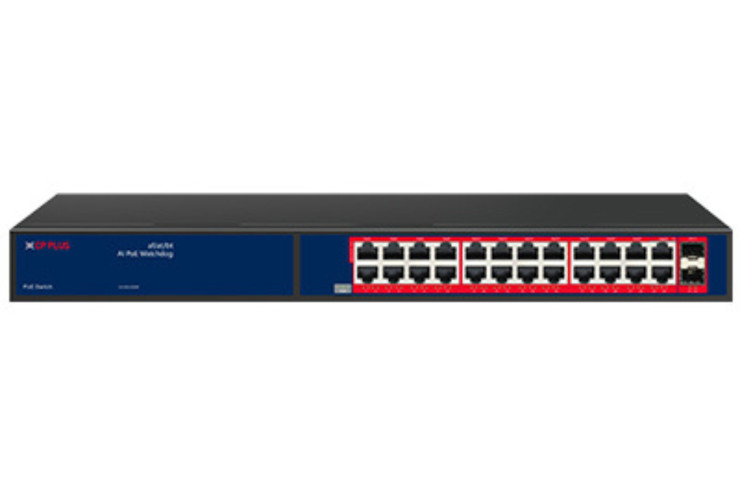

CP-ANW-GPU24F2-N30

24 Gigabit Port + 2 SFP 10/100/1000Mbps AI PoE Switch

Category: Switches

Sub Category: PoE

SKU: 32536

Using CAT.5 network patch cords support power for the wireless AP and IP camera
Networking standard: IEEE802.3af/at/bt
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart.
Upload port automatic flip (Auto MDI/MDIX)
Network performance: Store-and-forward
Intelligent power distribution and secure power supply system
The port power is 60 watts, it is convenient for high-power device
Zero configuration feature power supply is automatically supplied to the adaptive equipment.

Switch Capacity	52.0 Gbps
PoE Ports	PoE (1~22) :10/100/1000Mbps PoE ports (RJ45) PoE (23~24) :10/100/1000Mbps PoE ports, BT port, Compatible uplink ports (RJ45) SFP (1~2):10/100/1000Mbps uplink ports (SFP)
Network Port	24 Gigabit Port
PoE Power Supply	n/a
PoE Standard	IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX/IEEE 802.3ab 1000 Base-T IEEE 802.3xFlowControl IEEE 802.3af/at/bt Power over Ethernet
PoE Power Budget	300W
ESD	n/a
MAC Address List	8K
Power Source	AC 180~240V
Power Consumption	n/a
Operating Temperature	-10°C ~ 60°C
Humidity	10%~ 90% (Non-condensing)
Dimension	430mm(L) x 180mm(W) x 45mm(H)
