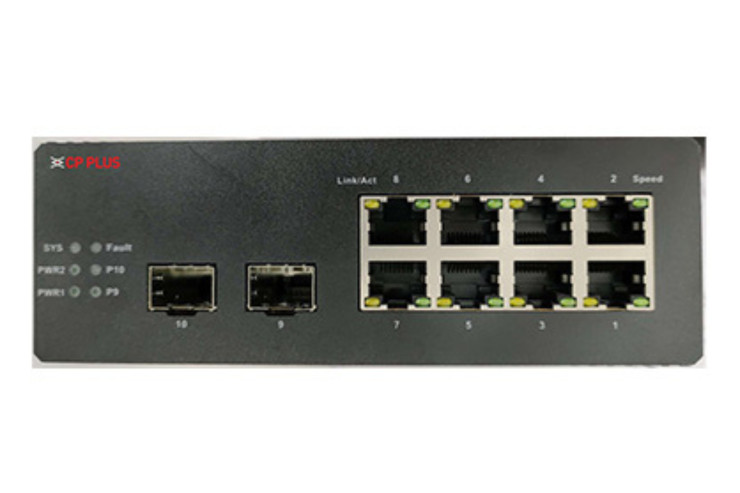

8× gigabit PoE+ ports and 2× gigabit SFP provide high-speed connections.
8× 802.3at/af-compliant PoE+ ports.
Power Budget: 120W.
Network Port
8 x 10/100/1000Mbps ports, 2 x 1000Mbps SFP ports, 1x Console port, 1 group of alarm output and relay output can define various custom condition trigger
10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100 meter), 1000BASE-T: Cat5 or later UTP(≤100 meter)
Optical Cable
Multi mode: 850nm 0 ~ 550M, Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM
Transfer Method
Store-and-Forward
MAC Address Table
8K
Switching Capacity
20Gbps
Forwarding Rate
14.88Mpps
Packet Buffer
4Mbit
Jumbo Frame
12K Bytes
Indicator
Network Indicator: Link (yellow), SFP Indicator: L/A (green), PoE Indicator: PoE (green), System indicator: SYS (green)
Power Budget
Maximum (PoE on): 120W
Power Supply Pin
Only support 1/2 (+), 3/6 (-) 4-core power supply
Max/Average Power Port
30W per port
Power Input
Dual DC 48~55V, Suitable Industrial Grade Power Supply
Power Consumption
Standby: <10W; Full load: <240W
Lightning Protection
Lightning protection: 6KV 8/20us;Protection level: IP40, IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge, IEC61000-4-3(RS):10V/m(80~1000MHz), IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV, IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV, IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz), IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s, IEC61000-4-9(pulsed magnet field):1000A/m, IEC61000-4-10(damped oscillation):30A/m 1MHz, IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV, IEC61000-4-16(common-mode transmission):30V; 300V,1s, FCC Part 15/CISPR22(EN55022):Class A, IEC61000-6-2(Common Industrial Standard)
Support IEEE802.3x flow control (full duplex), Support for broadcast storm suppression based on port rate, Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps, Support port temperature protection settings, Support port EEE green Ethernet energy saving configuration
PoE Management
Support total power limit configuration for PoE power supply, Support PoE output power allocation per port, close / start af/at, Support PoE output priority configuration per port, Support PoE work status per port display, Support PoE work and time scheduling
VLAN
Support port based VLAN (4K), IEEE802.1q, Support protocol based VLAN, Support Voice VLAN, Support for MAC address-based VLANs, Support Access, Trunk, Hybrid three types of port configuration, QinQ; Generic VLAN Registration Protocol (GVRP)
Resiliency
Loop back detection; IEEE 802.1 AB for Link Layer Discovery Protocol (LLDP); EAPS/ERPS
Layer 3 Function
L2+ network management function, Support IPV4/IPV6 management, Support layer3 soft routing (weak three tier) forwarding, Support different network segments, communication between different VLAN, Support static routing / default routing 128, 1024 ARP software forwarding
Port Aggregation
Support LACP, Support static polymerization, Support the largest 8 aggregation groups; each aggregation group supports 8 ports
Spanning Tree
Support STP (IEEE802.1d), Support RSTP (IEEE802.1w), Support MSTP (IEEE802.1s)
Industrial Ring Network Protocol
Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring The self healing time of the ring network is less than 20ms
QoS
Support Diff-Serv QoS, Each port supports 8 output queues, Support 802.1p/DSCP priority mapping, Support queue scheduling mechanism (SP, WRR, SP+WRR), Support priority tag Mark/Remark, Support stream based packet filtering, Support for stream based redirection Strict Priority, Weighted Round Robin or Mixed Scheduling; Tail-Drop, WRED
Safety Characteristics
Support user grading management and password protection, Support AAA&RADIUS authentication, Support the number of MAC address learning restrictions, Support IEEE802.1X authentication / centralized MAC address authentication, Support MAC address black hole Support SSH 2.0 to provide secure passwords for user login, Support SSL to ensure data transmission security, Support port isolation, Support the speed limit function of ARP message, Support IP source address protection, Support ARP intrusion detection function, Support against DoS attacks, Support port broadcast message suppression, Support host data backup mechanism Binding capabilities of IP+MAC+VLAN+ ports
Security
Port Isolation; Port and MAC-based 802.1x Authentication; DoS attack protection
Support IGMP Snooping V1/V2 and support 1024 multicast groups at most, Support the user's quick departure mechanism, Support MLD Snooping V1/V2, Support multicast VLAN IPv4/IPv6 shared multicast groups
ACL
Support L2 to L4 packet filtering function, match the first 80 bytes of the message Provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP Protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL Support ACL based on port and VLAN
Mirror
Bi-directional traffic mirroring supporting the basic port
DHCP
Support DHCP Client, Support DHCP Snooping, DHCP option82, DHCP Relay
Management And Maintenance
Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration, Support WEB network management (HTTPS), Support FTP, TFTP, xmodem, SFTP file download management, Support SNMP V1/V2C/V3, Support one bond reduction, Support NTP clock Support system work log Support Ping detection, Support cable state detection, Support CPU instant utilization status view, Support link layer discovery protocol LLDP center, RMON 1,2,3,9 Groups; One-to-One and Many-to-One Port Mirroring; LLDP and LLDP-MED; Syslog
