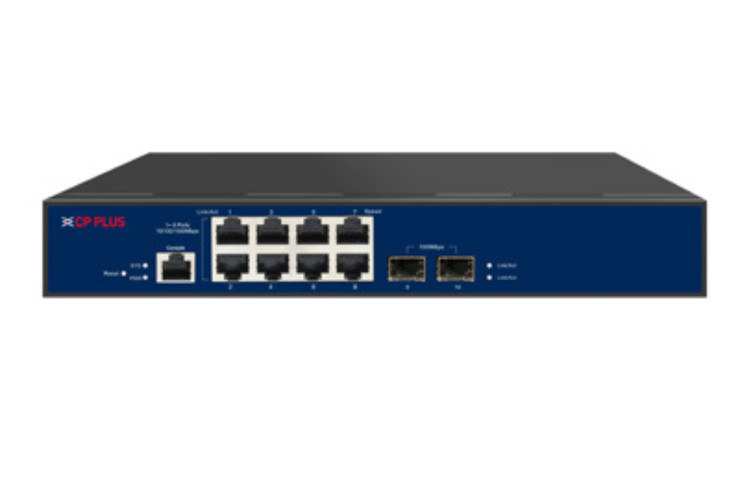

CP-ANW-GPM8F2-N12

8 Port Gigabit + 2 Port Gigabit SFP Layer 2 Managed PoE Switch

Category: Switches

Sub Category: PoE

SKU: 12435

Supports IEEE 802.3i IEEE 802.3u IEEE802.3ab IEEE802.3z IEEE802.3x IEEE802.3at IEEE802.3af IEEE802.3az
8 x Gigabit PoE+ Ports and 2 x Gigabit SFP
Supports MAC address auto learning and auto aging
Store and forward mode operates
Supports PoE power up to 30W for each PoE port, all power up to 120W.
LED indicators for monitoring power, link/activity
Support QoS, port mirroring, link aggregation protocol
19 inches full metal iron shell and internal power adapter design, suitable for rack installation

LED light	Power, System (Per Device); Link/Activity (Per Port)
PoE Ports	8 x 10/100/1000Mbps ports 2 x 1000Mbps SFP ports 1 x Console port
PoE Standard	IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3af, IEEE802.3at
Packet Forwarding Rate	41.67Mpps
MAC Address List	8K
Power Source	100~240VAC,50/60HZ, 120W Power Consumption
Working Temp	-20°C to 55°C
Humidity	10%~90% (Non-condensing)
Dimension	230mm(W) x 150mm(D) x 44.5mm(H)
