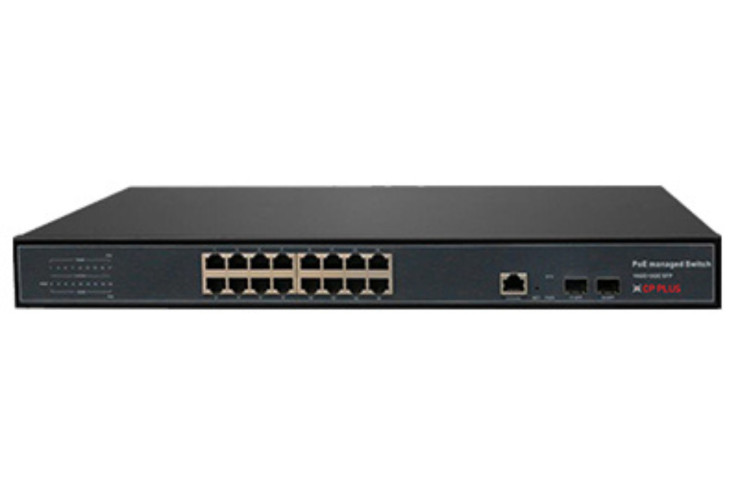

CP-ANW-GPM16F2-N30

16 Port Gigabit + 2 Port Gigabit SFP L2 Managed PoE Switch

Category: Switches

Sub Category: PoE

SKU: 12435

Supports IEEE 802.3i IEEE 802.3u IEEE802.3ab IEEE802.3z IEEE802.3x IEEE802.3at IEEE802.3af IEEE802.3az
Supports PoE power up to 30W for each PoE port, all power up to 120W
16 × gigabit PoE+ ports and 2 × gigabit SFP
Supports MAC address auto learning and auto aging
Store and forward mode operates
LED indicators for monitoring power, link/activity
Support QoS, port mirroring, link aggregation protocol
19 inches full metal iron shell and internal power adapter design, suitable for rack installation

Network Port	16 x 10/100/1000Mbps ports 2 x 1000Mbps SFP ports 1 x Console port
Network Standard	IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3af, IEEE802.3at
Network Media (Cable)	10Base T: UTP category 3, 4, 5 cable (maximum 100m) 100Base Tx: UTP category 5, 5e cable (maximum 100m) 1000Base T: UTP category 5e, 6 cable (maximum 100m) 1000Base X: MMF, SMF
Transfer Mode	Store-and-Forward
MAC Address List	8K
Bandwidth	36.0 Gbps
Packet Forwarding Rate	40.5Mpps
Packet Buffer	4.1Mbit
Jumbo Frame	12K Bytes
PoE Ports	16x PoE ports compliant with 802.3at/af
PoE Power Supply	1/2(+), 3/6(-)
Power Budget	300W@100 ~260VAC, 50/60HZ
Power Input	100~240VAC, 50/60HZ, 300W
Power Consumption	Maximum (PoE on): 300W
LED light	Power, System (Per Device) Link/Activity (Per Port)
Operating Temperature	0°C ~55°C
Operating Humidity	10%~90% (Non-condensing)
Storage Temperature	-40°C ~70°C
Storage Humidity	5%~90% (Non-condensing)
Dimensions	497mm(W) x 393mm(D) x 97mm(H)
