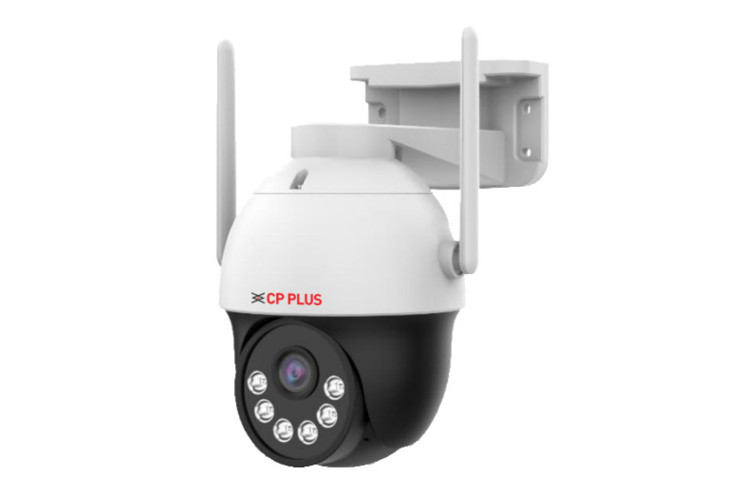

CP-Z32G

3MP 4G Pan/Tilt Camera

Category: EzyHome

Sub Category: ezyKam+

SKU: 24687

1/2.8” 3MP CMOS Image Sensor (0.9071 centimeters)
4mm Fixed Lens
H.265/H.264 Video Compression
Max. 15fps@3MP
Support RJ45 Port and 4G Sim
Support Two-way Audio Communication
Pan/Tilt Support: Pan: Up to 263°, Tilt: Up to 90°; 6 preset positions support
Support Micro SD Card 256GB
IR Range up to 20-30mtr, White light 15-20mtr
Support human detection. The device can turn on white light when someone breaks into the monitoring area. And the real-time alarm push information is sent on mobile app
With white light and infrared light, support three night vision mode: B/W mode, full color mode and Smart mode
IP66 waterproof, 4000V lightning protection, anti-surge

Image Sensor	1/2.8” 3MP CMOS Image Sensor (0.9071 centimeters)
Video Compression	H.265/ H.264
Resolution	3MP
Lens	4mm Fixed
View Mode	HD and SD
Pan & Tilt Range	Pan Range: Up to 263°, 0.1° ~ 20°/sec; Tilt Range: Up to 90°, 0.1° ~ 20°/sec
Day-Night Mode	Smart Mode, Infrared Mode, Color Mode
No of Presets	6 (Site)
Tour	1 (Patrol)
Dynamic Range	Digital WDR
DNR	3D digital noise reduction
Image Flip	Supported
Video Streaming	Main stream:2304 x 1296, Sub stream: 640 x 360
Frame Rate	Max 15fps, frame rate self-adaption
Audio	Two Way Audio
Audio Input	Built in Mic
Audio Output	Built-in Speaker
Audio Compression	AAC, G711
4G Frequency Band	FDD LTE:B1/B3/B5/B8;TDD LTE: B34/ B38/B39/B40/B41; WCDMA:B1/B5/B8
Motion Detection	Supported
Alarm Notification Push	Supported
Motion Tracking	Supported
Privacy Mode	Supported
Human Detection	Supported
Onvif	Supported
RTMP	Supported
Ethernet	10-100Mbps self-adaption
IR	20-30 mtr.
Spotlights distance (LED)	Spotlight 15-20 mtr.
IR LED	6 white LEDs and 6 infrared LEDs, (Dual Light)
Storage	Micro SD Card (Max 256GB)
Weatherproof Standard	IP66, TVS 4000V Lightning protection, anti-surge
Power Source	DC 12V, 1A
Power Consumption	<15W
Working Temp	-20 ֯C ~ 50 ֯C
Working Humidity	<95% (no condensation)
