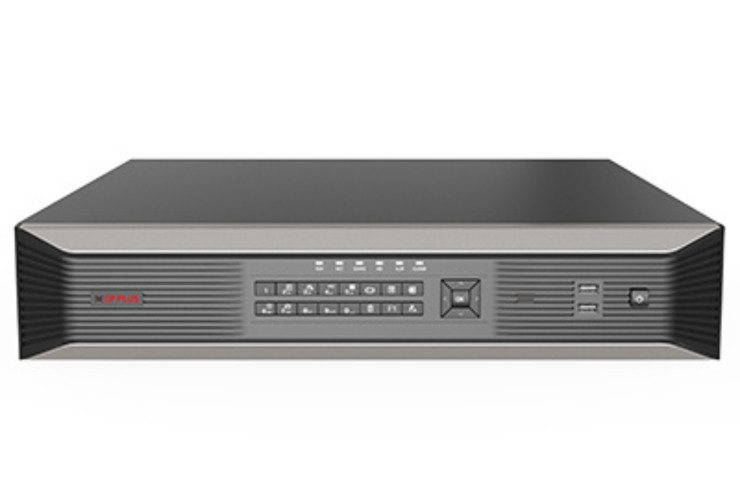

CP-VNR-3832-V2

32 Ch. 4K Network Video Recorder

Category: Network Video Recorder (NVR)

Sub Category: 32 Ch.

SKU: 35312

32 Channel IP Camera Input
Ultra H.265/ H.265/H.264 Video Formats
384Mbps Incoming/384Mbps Outgoing Bandwidth
Support Up to 12 Megapixels Resolution Recording
Various fisheye dewarping modes for live view and playback for both web interface and GUIs
Support 8 SATA HDDs up to 10TB Each, 3 USB Ports
Support Multi-brand network cameras
Support RAID 0, 1, 5, 6, 10
Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) Resolution
ANR technology to enhance the storage reliability when the network is disconnected
HDMI1, HDMI2, VGA independent outputs provided
Support N+1 Hot spare
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE

Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Two-way Talk	1 channel, RCA
User Interface	GUI
Bandwidth Incoming	384Mbps
Video Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Channel	32 channel
Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Alarm Input	16 channel
Alarm Output	4 channel
Hard Disk	8 SATA ports, up to 10TB each
Playback	16 Channel
Ethernet	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
Interface Ports	Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0, 1 RS485 Port, 1 RS232 Port, 1 eSATA Port
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, ONVIF (Profile S, Profile G, Profile T )
Power Supply	100~240 VAC
Power Consumption	≤25 W (without HDD)
Working Temp	-10°C ~ + 55°C ( +14°F ~ +131°F )
Dimension	442mm ×426mm× 89mm
Weight	≤5.7kg (without HDD)
