CP-VNP-4421L25-DAS

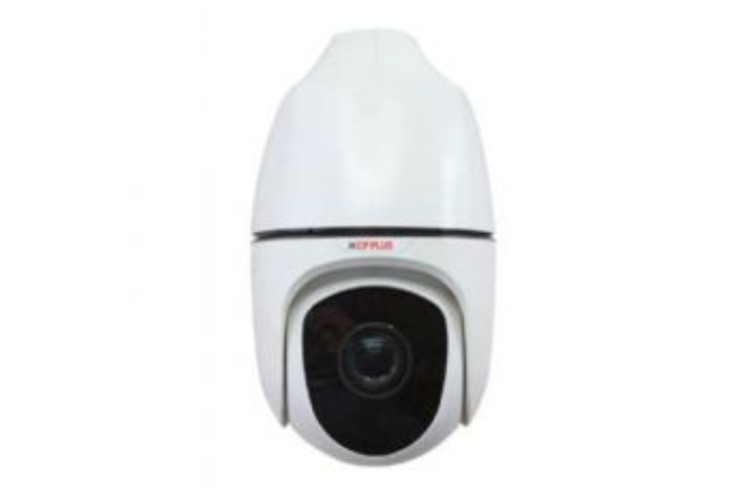

2MP 44x WDR IR Network PTZ Camera - 250 Mtr.
Add To Cart
Category:
Speed Dome(PTZ)
Sub Category:
Network
SKU:
4389
Share:
Description
Additional Information
Ratings
1/2.8" 2MP Progressive scan CMOS Image Sensor (0.9071 centimeters)
Max. 2MP (1920x1080), Max 60fps
Powerful 44x Optical Zoom
WDR(120dB), 2D/3D-DNR, Day/Night (ICR), EIS, Defog, AWB, ROI, BLC, HLC
Ultra 265, H.265, H.264, MJPEG Triple streams Encoding
Up to 1024 Presets, Preset patrol, route patrol, recorded patrol
Max 240°/s pan speed, 360° endless pan rotation
Built-in 2/1 alarm in/out, IP67
IR Range of 250 Mtr., Micro SD Card
Support Starlight Technology
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/2.8" 2MP Progressive scan CMOS Image Sensor (0.9071 centimeters)
Resolution
2MP
Video Output
1 BNC, impedance 75 O; amplitude 1 V [p-p]
S/N Ratio
>52dB
Minimum Illumination
Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR
Focal Length
5mm ~ 220 mm
White Balance
Auto / Manual
Focus Control
Auto / Manual
Iris Control
Auto/Manual; F1.2 ~ F3.5
Angle of View
60.6° ~ 1.8°(H), 34.8° ~ 0.8°(V), 74.5° ~ 2.1°(O)
Electronic Shutter
Auto/Manual, shutter time: 1 ~ 1/100000 s
AGC Control
Auto / Manual
Back Light Compensation
BLC / HLC / WDR(120dB)
Optical Zoom
44X
Digital Zoom
16x
Pan Travel
360° endless, Pan Speed: 0.1°/s ~ 240°/s
Tilt Travel
-15° ~ 90°(auto reverse), Tilt Speed: 0.1° ~ 160°/s
Presets
1024
Preset Speed
Pan: 300° /s; Tilt: 240° /s
Day/Night: IR Cut Filter
IR-cut filter with auto switch (ICR)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Video Streaming
Main Stream: 2MP (1920x1080), Max 60fps ; Sub Stream: 2MP (1920x1080), Max 60fps; Third Stream: D1 (720x576), Max 60fps
Audio Streaming
Two way Talk Supported
Networking
10M/100M Base-TX Ethernet, 1 RS485
IVS
Line crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage, Object Moving, Object Left, Face detection, Audio detection, Motion detection, People counting
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
Alarm
2 In/1 Out
IR Range
IR Range of 250 Mtr.
Operating Temperature
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Memory
Micro SD, up to 256GB
Weatherproof Standard
IP66
Power Source
AC 24V (Default)±25%, DC 24V±25%
Power Consumption
16 ~56W
Dimension
Φ270mm x 496.7mm(Φ10.6” x 19.6”)
Weight
9.69 kg
