CP-VNP-3321L20-DAS
Home
Products
CP-VNP-3321L20-DAS

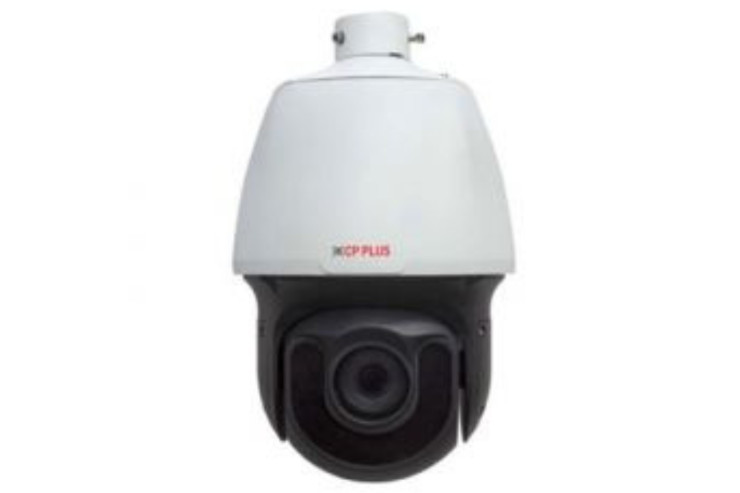

2MP Full HD WDR Network IR PTZ Camera - 200 Mtr.
Add To Cart
Category:
Speed Dome(PTZ)
Sub Category:
Network
SKU:
16348
Share:
Description
Additional Information
Ratings
1/2.8" 2MP Progressive scan CMOS Image Sensor (0.9071 centimeters)
Max. 2MP (1920x1080), Max 60fps
Powerful 33x Optical Zoom
WDR(120dB), 2D/3D-DNR, Day/Night (ICR), EIS, Digital Defog, AWB, ROI, BLC, HLC
Ultra 265, H.265, H.264, MJPEG Triple streams Encoding
Up to 1024 Presets, Preset patrol, route patrol, recorded patrol
Max 240°/s pan speed, 360° endless pan rotation
Built-in 2/1 alarm in/out, IP66
IR Range of 200 Mtr., Micro SD Card
Support Starlight Technology
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/2.8" 2MP Progressive scan CMOS Image Sensor (0.9071 centimeters)
Resolution
2MP
Video Output
1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
S/N Ratio
>52dB
Minimum Illumination
Colour: 0.001Lux (F1.6,AGC ON) 0Lux with IR
Frame Rate
Main Stream: 2MP (1920x1080), Max 60fps ; Sub Stream: 2MP (1920x1080), Max 60fps; Third Stream: D1 (720x576), Max 60fps
Focal Length
4.5mm ~ 148.5 mm
White Balance
Auto / Manual
Focus Control
Auto / Manual
Iris Control
Auto/Manual; F1.6 ~ F5.3
Angle of View
62.67° ~ 2.82°(H), 38.4° ~ 1.3°(V), 77.1° ~ 3.3°(O)
Electronic Shutter
Auto/Manual, shutter time: 1 ~ 1/100000 s
AGC Control
Auto / Manual
Back Light Compensation
BLC / HLC / WDR(120dB)
Optical Zoom
33X
Digital Zoom
16x
Pan Travel
360° endless, Pan Speed: 0.1°/s ~ 240°/s
Tilt Travel
-15° ~ 90°(auto reverse), Tilt Speed: 0.1° ~ 160°/s
Presets
1024
Preset Speed
Pan: 300° /s; Tilt: 240° /s
Special Features
IR Range upto 200m, Preset patrol, Route patrol, Recorded patrol
Privacy Mask
Up to 24 areas
Day/Night: IR Cut Filter
IR-cut filter with auto switch (ICR)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Video Streaming
Triple Stream
Audio Streaming
Two way Talk Supported
Networking
10M/100M Base-TX Ethernet, 1 RS485
IVS
Line crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage, Object Moving, Object Left, Face detection, Audio detection, Motion detection, People counting
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
Alarm
2/1 Ch. In/Out
IR Range
200 Mtr.
Operating Temperature
-40°C ~ 70°C (-40°F ~ 158°F), Humidity <95% RH(non-condensing)
Memory
Micro SD, up to 256GB
Weatherproof Standard
IP66
Dimension
Ø227 x 359.4 mm (Ø8.9” x 14.2”)
Power Source
AC 24V (Default) ±25%, DC 24V±25%
Power Consumption
11 ~ 47W
Weight
5.5kg
