CP-VNP-2221L15-P
Home
Products
CP-VNP-2221L15-P

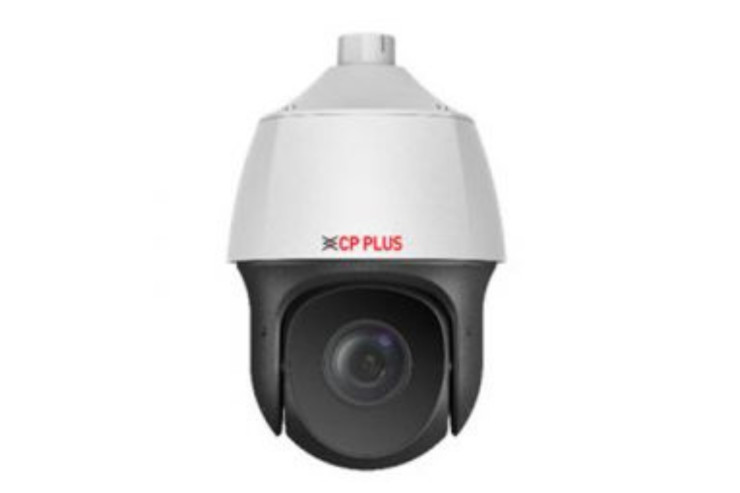

2MP 22x Full HD IR Network PTZ Camera - 150 Mtr.
Add To Cart
Category:
Speed Dome(PTZ)
Sub Category:
Network
SKU:
17563
Share:
Description
Additional Information
Ratings
1/2.9" 2MP PS CMOS Image Sensor (0.8758cm)
Powerful 22x Optical Zoom
Ultra 265,H.265, H.264, MJPEG Triple streams Encoding
Up to 1024 Presets, Preset patrol, route patrol, recorded patrol
DWDR, Day/Night(ICR), 2D/3D-DNR, EIS, Defog, AWB, AGC, BLC, HLC
Max 240°/s pan speed, 360° endless pan rotation
Built-in 1/1 alarm in/out, IP66, Supports PoE
IR Range of 150 Mtr., Smart IR, Micro SD Card
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/2.9" 2MP PS CMOS Image Sensor (0.8758cm)
Effective Pixels
1920(H) x 1080(V)
Resolution
2MP
S/N Ratio
>55 dB
Minimum Illumination
Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR
Focal Length
5.2~ 114.4 mm
White Balance
Auto / Manual
Focus Control
Auto / Manual
Iris Control
F1.5~F4.0
Angle of View
54.40° ~ 3.44° (H), 39.2° ~ 1.9°(V), 66.9° ~ 4.1°(O)
Electronic Shutter
Auto/Manual, shutter time: 1 ~ 1/100000s
AGC Control
Auto / Manual
Back Light Compensation
BLC/ HLC/ DWDR
Optical Zoom
22X
Digital Zoom
16x
Pan Travel
360° endless, Pan Speed: 0.1°/s ~ 240°/s
Tilt Travel
-15° ~ 90°(auto reverse), Tilt Speed: 0.1° ~ 80°/s
Presets
1024
Preset Speed
Pan: 300° /s; Tilt: 80° /s
Special Features
IR Range upto 150m, Digital Defog, Up to 1024 Presets, Preset patrol, route patrol, recorded patrol
Privacy Mask
Up to 24 areas
Day/Night: IR Cut Filter
IR-cut filter with auto switch (ICR)
Video Compression
Ultra 265,H.265, H.264, MJPEG
Video Streaming
Main Stream: 2MP (1920×1080):Max. 30 fps; Sub Stream: 2MP (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
Motion Detection
Up to 4 areas
ROI
Up to 8 areas
Audio Streaming
Two way Talk Supported, 1Ch. Input: impedance 35 kΩ; amplitude 2 V [p-p], 1Ch. Output: impedance 600 Ω; amplitude 2 V [p-p]
Networking
10M/100M Base-TX Ethernet
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS, ONVIF (Profile S, Profile G, Profile T), API
Alarm
1 Ch. In/1 Ch. Out
IR Range
150 Mtr.
Operating Temperature
-40°C ~ +65°C (-40°F ~ 149°F), Humidity: 10%~90% RH(non-condensing)
Memory Slot
Micro SD, up to 256GB
Weatherproof Standard
IP66
Dimension
Φ220 × 369mm (Φ8.7” x 14.5”)
Weight
3kg
Power Source
DC 12V±10%, PoE (PSE Required)
Power Consumption
30W
