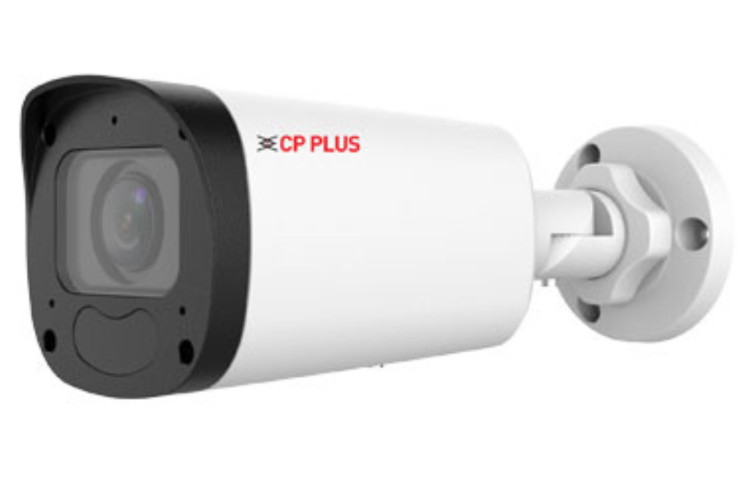

CP-VNC-T41ZR5C-MD

4MP WDR Array Network Bullet Camera - 50Mtr.

Category: Network Camera

Sub Category: 4 MP

SKU: 66791

1/3” 4Megapixel PS CMOS Image Sensor (0.8467 centimeter)
Max 25/30fps@4MP
Ultra 265, H.265, H.264,MJPEG triple-stream encoding
WDR(120dB), Day/Night (ICR), 2D/3D-DNR, 9:16 Corridor Mode, Digital Defog, ROI, AWB, AGC, BLC, HLC
2.8~12mm Motorized lens
Array Range of 50 Mtrs, Micro SD Card, IP67, PoE
Support Instastream technology, save diskspace and bandwidth upto 70%
Support Built-in Mic
Mobile Software: Android, iOS
CMS Software: IVMS
Only for UAE

Image Sensor	1/3” 4Megapixel progressive CMOS (0.8467 centimeter)
Minimum Illumination	Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
BodyType	Bullet
Shutter Speed	Auto/Manual, 1~ 1/100000s
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Lens	2.8~12mm Motorized
Gain Control (AGC)	Auto/Manual
Angle of View	102.79°~ 30.86° (H), 54.50°~17.49° (V), 106.94°~35.49° (O)
Video Compression	Ultra 265, H.265, H.264, MJPEG
Wavelength	850nm
Lens Type	Motorized
S/N Ratio	>56dB
Max Aperture	F1.6
Back Light Compensation	BLC / HLC / WDR(120dB)
Video Compression	Main Stream: 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; (640x360),Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
DORI Distance	2.8mm- 63.0m (Detect) 25.2m (Observe) 12.6m (Recognize) 6.3m (Identify) 12mm- 270.0m (Detect) 108.0 (Observe) 54.0 (Recognize) 27.0m (Identify)
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Motion Detection	Up to 4 areas
Privacy Mask	Up to 4 areas
ICR	IR-cut filter with auto switch (ICR)
ROI	Up to 8 areas
Audio Compression	G.711
Audio Input	Built-in Mic
Bit Rate	128 Kbps~16 Mbps
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP; ONVIF (Profile S, Profile G, Profile T), API
Ethernet	1 x RJ45 10M/100M Base-TX Ethernet
Smart Phone	iPhone, iPad, Android Phone
IR Range	Array Range of 50 Mtr., Smart IR
Micro SD	Micro SD, up to 256GB
Operating Temperature	-30°C~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Power Source	DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption	Max 8.5W
Weatherproof Standard	IP67
Dimension	206 × 74 × 74mm (8.1” × 2.9” × 2.9”) (L × W × H)
Casing	Metal
Weight	0.55 kg
