CP-VNC-T41R6-VMD
Home
Products
CP-VNC-T41R6-VMD

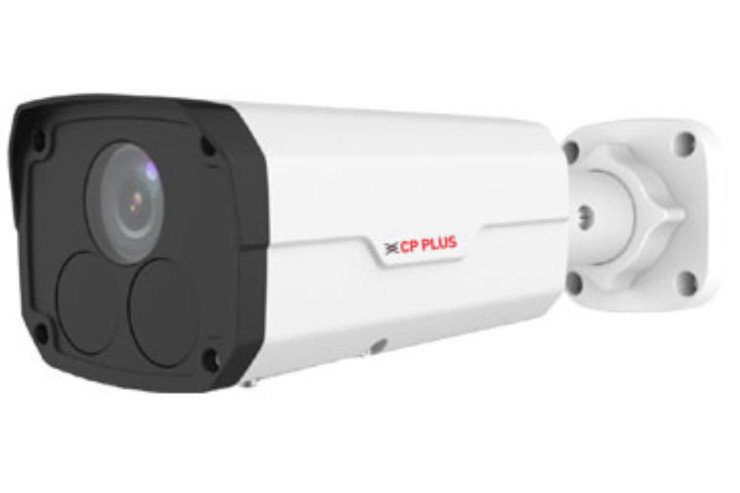

4 MP WDR Array Bullet Camera - 60Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
4 MP
SKU:
65636
Share:
Description
Additional Information
Ratings
1/3” 4Megapixel PS CMOS Image Sensor (0.8467 centimeter)
Max 30fps@4MP
Ultra 265, H.265, H.264,MJPEG triple-stream encoding
WDR(120dB), Day/Night (ICR), 2D/3D-DNR, Corridor mode, ROI, AWB, AGC, BLC, HLC
3.6mm lens (6mm Optional)
Array Range of 60 Mtrs, Micro SD Card, IP67, IK10, PoE
Support Instastream technology, save diskspace and bandwidth upto 70%
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/3” 4Megapixel progressive CMOS (0.8467 centimeter)
Minimum Illumination
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
BodyType
Bullet
Shutter Speed
Auto/Manual, 1~1/100000s
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Lens
3.6mm Lens (6mm Optional)
Gain Control (AGC)
Auto/Manual
Angle of View
3.6mm- 82.0°(H), 41.6°(V), 100.9°(O) ; 6mm- 52.1°(H), 28.4°(V), 64.1°(O)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Wavelength
850nm
Lens Type
Motorized
S/N Ratio
>52dB
Max Aperture
F1.6
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main Stream: 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 30fps; 2MP (1920x1080), Max 30fps;Sub Stream: 2MP (1920x1080), Max 30fps; Third Stream: D1 (720x576)@30fps
DORI Distance
3.6mm- 90m (Detect) 36m (Observe) 18m (Recognize) 9m (Identify) 6mm- 135m (Detect) 54m (Observe) 27m (Recognize) 13.5m (Identify)
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Motion Detection
Up to 4 areas
Privacy Mask
Up to 8 areas
ICR
IR-cut filter with auto switch (ICR)
Defog
Digital
ROI
Up to 8 areas
OSD
Up to 8 OSDs
Bit Rate
128 Kbps~16 Mbps
Audio
1 Input: impedance 35kΩ; amplitude 2V [p-p]/ 1 output: impedance 600Ω; amplitude 2V [p-p]
Protocol
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS, ONVIF (Profile S, Profile G, Profile T), API
Ethernet
1 x RJ45 10M/100M Base-TX Ethernet
General Function
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Smart Phone
iPhone, iPad, Android Phone
Smart Detection
Intrusion, cross line, motion detection, Audio detection, Defocus, Scene Change, Object Left, Object Moving, Human Body Detection
IR Range
Array Range of 60 Mtr., Smart IR
Micro SD
Micro SD, up to 256GB
Operating Temperature
-35°C~60°C(-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Temperature
-35°C~60°C(-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Power Source
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Max 6.5W
Weatherproof Standard
IP67 & IK10
Dimension
245.4 × 86.4 × 85.4mm (9.7” × 3.4” × 3.4”) (L x W x H)
Casing
Metal
Weight
0.87kg
