CP-VAC-T24PL2-V3

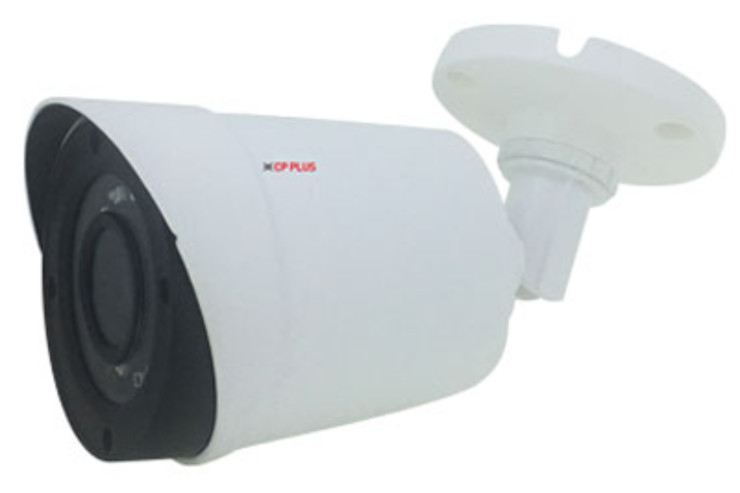

2.4 MP Full HD IR Bullet Camera - 20 Mtr.

Category: Analog HD Camera

Sub Category: 2.4 MP

SKU: 13156

Image Sensor	1/2.7” 2.4MP HQIS Pro Image Sensor (6.858cm)
Minimum Illumination	Color(0.1Lux), (0 Lux IR LED On)
BodyType	Bullet
Shutter Speed	1/50s(1/60s)-1/100,000s(Auto/Fixed)
White Balance	Auto
AGC Control	Auto
Lens	3.6mm
Gamma Correction	0.45
S/N Ratio	≥41dB
Back Light Comp.	Auto
Frame Rate	30fps(60Hz) , 25fps(50Hz)
No. of IR LEDs	12pcs
Video Output	1.0Vp-p Composite Output (75O / BNC), HD-AHD(1080P)\ HD-TVI(1080P)\ HD-CVI(1080P)\ CVBS
Resolution	2.4MP
ICR	support
WDR	DWDR
IR Range	IR Range of 20 Mtr.
Operating Temperature	-20°C~+50°C
Humidity	10% ~ 90% (humidity), <95% RH no dew
Power Source	DC12V(+/-15%)
Power Consumption	0.4W(2.5W after IR LED Powered on)
Weatherproof Standard	IP66
Dimension	154.6mm x 71mm x 71mm
Weight	0.2 KG
