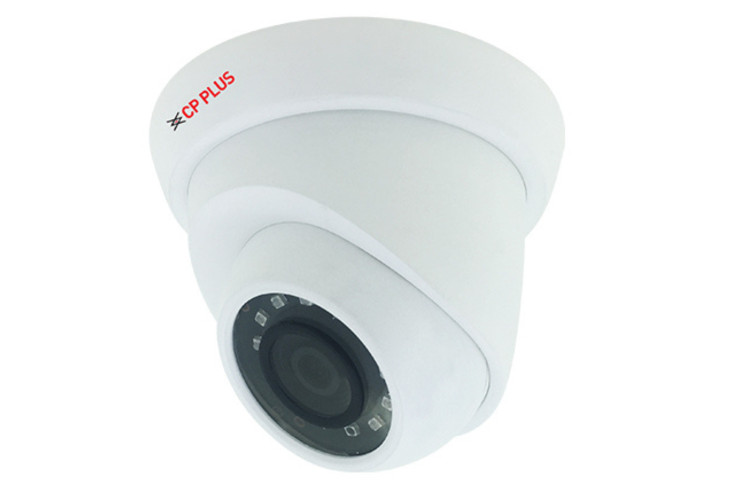

CP-VAC-D50L2-V2

5MP Full HD IR Dome Camera - 20 Mtr.

Category: Analog HD Camera

Sub Category: 5 MP

SKU: 41241

Image Sensor	5MP HQIS Pro Image Sensor
Minimum Illumination	1lux (IR LED ON) , 3lux (IR LED OFF)
BodyType	Dome
Shutter Speed	1/50s(1/60s)-1/100,000s（Auto/Fixed）
White Balance	Auto
Lens	3.6mm (6mm optional)
Gain Control (AGC)	Auto
Gamma Correction	0.45
S/N Ratio	≥35dB
Back Light Comp.	Auto
Frame Rate	20fps/12.5fps@5MP
No. of IR LEDs	12pcs
Video Output	1.0Vp-p Composite Output (75Ω / BNC), HD-AHD(5MP)\ HD-TVI(5MP)\ HD-CVI(5MP)\ CVBS
Resolution	5MP
ICR	Support ICR
IR Range	20 Mtr.
Operating Temperature	-20°C~ 50°C
Humidity	10% ~ 90% (humidity) , ≤95% RH no dew
Power Source	DC12V(+/-15%)
Power Consumption	1.2W (4W after IR LED Powered on)
Dimension	108mm x 108mm x 73.5mm
Weight	0.2 KG
