CP-UVR-3201K2-V4
Home
Products
CP-UVR-3201K2-V4

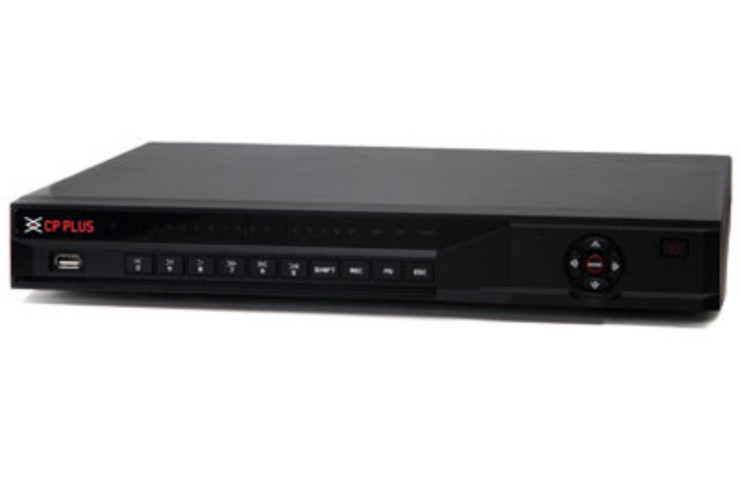

32 Ch. 1080P HD DVR
Add To Cart
Category:
Digital Video Recorder (DVR)
Sub Category:
32 Ch.
SKU:
41235
Share:
Description
Additional Information
Ratings
Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
Support upto 5MP IP Camera
Max 128Mbps Incoming Bandwidth
H.264+ / H.264 dual-stream video compression
HDMI / VGA Simultaneous Video Output
Support 2 SATA HDD up to 16TB, 2 USB Ports
Mobile Software: iCMOB, gCMOB
CMS Software:KVMS, KVMS Pro
Processor
Embedded processor
Operating System
Embedded LINUX
IP Camera Input
32 Ch. : each channel up to 5MP
Two-way Talk
Reuse audio in/out, RCA
User Interface
GUI
Video Output
1 HDMI, 1 VGA, 1 TV
Video Resolution
1920×1080, 1280×1024, 1280×720, 1024x768
Video Recording
Main stream: 4M-N/1080P(1~15fps), 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps)
Video Display Split
1/4/8/9/16/25/36
Video Channel
32 channel, BNC
Audio Output
1 channel
Audio Channel
1 channel
Motion Detection
MD Zones: 396 (22 × 18)
Video Loss
Supports
Smart Phone
iPhone, iPad, Android, Phone
Hard Disk
2 SATA port, up to 16TB
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode
USB Device/Network
Playback
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Max User Account
128 users
Record Interval
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet
RJ-45 port (1000M)
Interface Ports
2 USB Ports (1USB 2.0, 1 USB 3.0), 1 RS485 Port
Protocols
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 2.4.1, CGI Conformant
Power Supply
DC12V/5A
Power Consumption
<20W(without HDD)
Working Temp
-10 ~+55°C / 10~90%RH
Dimension
375mm×287mm×53mm
Weight
2.35kg (without HDD)
