CP-UVR-1601F1-IC
Home
Products
CP-UVR-1601F1-IC

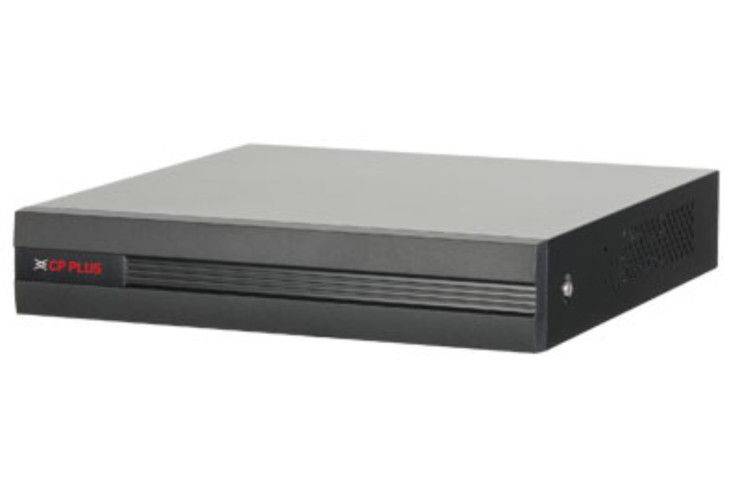

16Ch. 5M-N Digital Video Recorder
Add To Cart
Category:
Digital Video Recorder (DVR)
Sub Category:
16 Ch.
Share:
Description
Additional Information
Ratings
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up to 6MP
Supports Full-channel AI Instastream
Instastream/H.265 dual-stream video compression
Up to 16 channels video stream (analog channel) SMD Plus
Support 1 SATA HDD up to 16TB Each, 2 USB Ports
1 HDMI / 1 VGA Simultaneous Video Output
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Processor
Embedded processor
Operating System
Embedded LINUX
IP Camera Input
16+8 channels, each channel up to 6MP
Two-way Talk
Reuse audio in/out, RCA
User Interface
GUI
Video Output
1 HDMI, 1 VGA
Video Resolution
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
Video Compression
AI Instastream/Instastream/H.265/H.264+/H.264
Video Recording
Main stream: All channel 5M-N (1 fps–10fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H D1/CIF (1 fps–25/30fps) Sub Stream: D1/CIF (1 fps–15fps)
Video Display Split
1/4/8/9/16
Resolution
5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF
Bit Rate
32 kbps–6144 kbps per channel
Video Channel
16 channel, BNC
Audio Compression
G.711A, G.711U, PCM
Audio Input
1 Ch., RCA (external) ; 16 Ch., BNC (coaxial)
Audio Output
1 channel, RCA
Motion Detection
Support
Video Loss
Support
Smart Phone
iPhone, iPad, Android Phone
Hard Disk
1 SATA port, up to 16TB Each
Camera Blank
Support
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode
Time/Date, MD & Exact search (accurate to second)
Backup Mode
USB Device/Network
Playback
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account
128 users
Record Interval
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet
1 RJ-45 port (10/100/100MB)
Interface Ports
2 USB Ports (USB 2.0)
Protocols
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant
Power Supply
DC12V/2A
Power Consumption
<12W (without HDD)
Working Temp
-10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH
Dimension
260.0 mm × 231.4 mm × 47.6 mm (W × D × H)
Weight
0.93 kg (without HDD)
