CP-UVR-0401E1-PG
Home
Products
CP-UVR-0401E1-PG

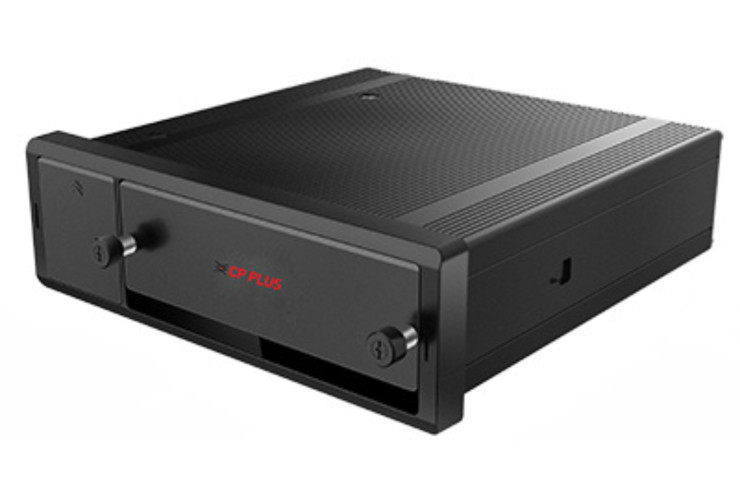

4 Ch. H.265 Mobile Video Recorder
Add To Cart
Category:
Mobile Surveillance
Sub Category:
Mobile Digital Video Recorder(MDVR)
SKU:
10000
Share:
Description
Additional Information
Ratings
Support 4 channels 1080P Realtime Recording
Support H.265/smart H.265 video compression
Support Penta-Brid (HDCVI/AHD/TVI/CVBS/IP) video input
Aviation connectors adopted
Support 1 HDD and 1 SD card, 3 USB Ports (2.0)
VGA/TV simultaneous video output
Micro SD card, Up to 256GB
Support Face Detection
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Processor
Embedded microprocessor
Two-way Talk
1 channel Input, 1 channel Output
User Interface
GUI
Video Output
1 VGA, 2 TV
Video Resolution
800×600
Video Compression
H.265/smart H.265 /H.264/smart H.264
Resolution
4 ch@1080P Realtime Recording
Motion Detection
MD Zones:396(PAL:22×18,NT SC:22×15)
Video Display Split
1/4/8/9
Video Loss
Supports
Camera Blank
Supports
Audio Compression
G.711A/G.711U/PCM
Alarm Input
9 channels, Alarm1–8 are local alarm input, Alarm 9 is pulse input.
Alarm Output
2 channels, 1 relay out, 1 Controllable 12V out
Hard Disk
1 SATA
Smart Phone
iPhone, iPad, Android Phone
Trigger Events
Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Memory
1 SD card, Up to 256 GB
Recording Mode
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Search Mode
Time/Date, Alarm, Motion Detection & Exact search (accurate to second)
Playback
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
Backup Mode
USB Device/Network
User Account
128 users
Interface Ports
3 USB 2.0, 2 Port RS232, 1 Port RS485, Heater (Optional)
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet
1 RJ-45 Port (10/100Mbps) and 1 6-pin aviation connector
Protocols
TCP/IP, UDP, DHCP, FTP, Email, Alarm Server
Power Supply
DC 6V~36V
Power Consumption
<8.4W (Without HDD)
Working Temperature
-30°C (with heater)~ +70°C (-22°F ~ +158°F)
Working Humidity
10 ~ 90% RH
Dimension
180mm×190mm×50mm
Net Weight
1.92Kg (without HDD)
