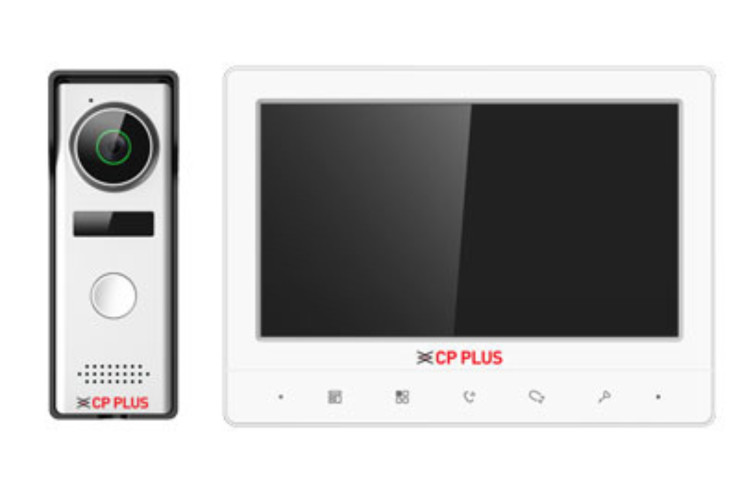

CP-UVK-701A - Supreme Security System

Video Intercom Kit

Category: Video Door Phones

Sub Category: Villa - Video Door Phones

SKU: 24357

7" TFT screen (17.78cm)
Video intercom function: Unlock, voice call, video call, volume adjustment
System Capacity: 2 door stations + 3 indoor monitors
Multiple bell sounds
Supports digital wide dynamic range (DWDR)

Communication Mode	Analog
Display	7.0" TFT (17.78cm)
Audio Input	1 channel to the microphone; pickup distance 0.5 m
Audio Output	1 channel to the speaker
IR	Auto IR
Power Source	Powered by indoor monitor (Outdoor) ; DC 12V/2A (Monitor)
Power Consumption	≤ 1W (standby) ; ≤ 3W (working) - Outdoor ; ≤ 2W (standby) ≤ 5W (working) - Monitor
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
Humidity	10%RH–95%RH
Dimension	131.45 mm × 46.00 mm × 33.80 mm (outdoor) ; 133.90mm × 182.70mm × 17.70mm (Monitor)
IP Rating	IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide).
Casing	PC + ABS
Weight	0.18 kg (Outdoor) ; 0.25kg (Monitor)
