CP-UVC-VB50ZL3-DS
Home
Products
CP-UVC-VB50ZL3-DS

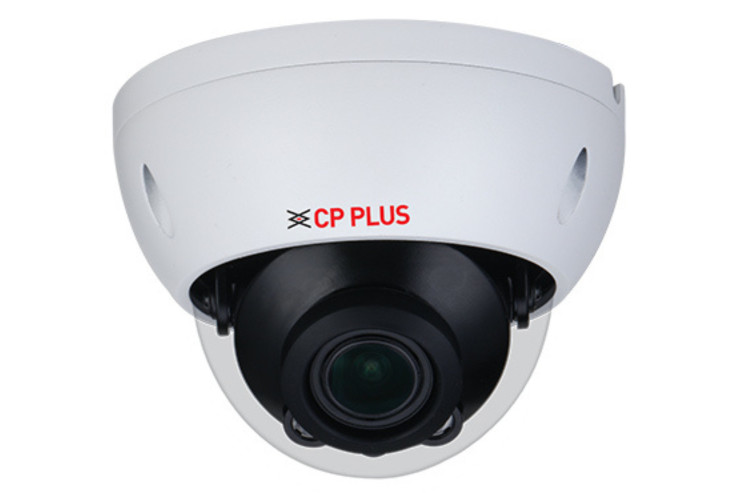

5MP IR Vandal Dome Camera
Add To Cart
Category:
Analog HD Camera
Sub Category:
5 MP
SKU:
6342
Share:
Description
Additional Information
Ratings
1/2.7” 5MP Progressive scan CMOS Image Sensor (0.9407 centimetres)
Max 25fps@5MP (16:9 video output)
WDR(120dB), Day/Night (ICR), 3D-NR, Electronic Defog, AWB, AGC, BLC, HLC
2.7mm~13.5mm Motorized Lens
IR Range of 30Mtrs., Smart IR, IP67, IK10
CVI/CVBS/AHD/TVI switchable
Support Starlight Technology
Image Sensor
1/2.7” 5MP Progressive scan CMOS Image Sensor (0.9407 centimetres)
Minimum Illumination
0.001 Lux/F1.6; 30IRE; 0 Lux IR on
Effective Pixels
2880 (H) × 1620 (V)
Shutter Speed
PAL: 1/3 s–1/100,000 s, NTSC: 1/4 s–1/100,000 s
White Balance
Auto / Manual
Close Focus Distance
0.8 m
Max. Aperture
F1.6
Mount Type
φ14
Lens Type
Motorized
Iris
Fixed iris
Lens
2.7mm~13.5mm
DORI Distance
2.7mm: 64.0m (Detect) 25.6m (Observe) 12.8m (Recognize) 6.4m (Identify) 13.5mm: 210m (Detect) 84.0m (Observe) 42.0m (Recognize) 21.0m (Identify)
S/N Ratio
>65dB
Back Light Compensation
BLC/ HLC/ WDR(120dB)/ HLC-Pro
Angle of View
Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138°
Video Streaming
CVI: PAL: 5M@25fps; 4M@25fps; 1080p@25fps NTSC: 5M@25fps; 4M@30fps; 1080p@30fps AHD: PAL: 4M@25fps NTSC: 4M@30fps TVI: PAL: 4M@25fps NTSC: 4M@30fps CVBS:PAL: 960H NTSC: 960H
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Digital Zoom
4x
Defog
Electronic defog
Auto Focus
Support
ICR
Auto switch by ICR
Noise Reduction
3D-NR
Privacy Mask
Off/on (8 area, rectangle)
Mirror
Off/On
Gain Control (AGC)
Auto / Manual
IR
IR Range of 30Mtr., Smart IR
Operating Temperature
-30°C to ~ +60°C (-22°F to +140°F) ; <95% (non-condensation)
Storage Temperature
-30°C to +60°C (-22°F to +140°F); <95% (non-condensation)
Power Source
12V DC ±30%
Power Consumption
Max. 6.6W (12V DC, IR on)
Weatherproof Standard
IP67, IK10
Dimension
φ122 mm × 88.9 mm
Casing
Metal throughout the whole casing
Weight
0.47 kg
