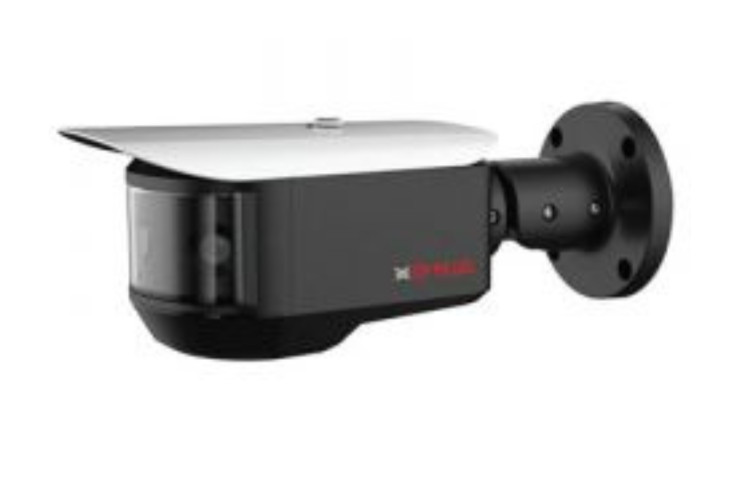

CP-UVC-RC4K08L2-VD

Multi-Lens Panoramic HDCVI IR Camera - 20 Mtr.

Category: Analog HD Camera

Sub Category: 4k

SKU: 17235

Image Sensor	Three 1/2.8” 2MP progressive scan CMOS (7.112 centimeters)
Minimum Illumination	0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)
Effective Pixels	Panorama: 4K(3840x832)/4MP(2560x554)
Shutter Speed	PAL:1/4s~1/100,000s, NTSC:1/3s~1/100,000s
White Balance	Auto / Manual
Lens	3.6mm lens
Gain Control (AGC)	Auto / Manual
S/N Ratio	More than 65dB
Back Light Comp.	BLC / HLC / WDR(120dB)
Video Streaming	PAL: 3840×2160@12.5fps, 2560x1440@25fps; NTSC: 3840×2160@15fps, 2560x1440@25fps
Video Output	1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output
Resolution	4K (3840X2160)/4MP(2560×1440)
ICR	Auto (Electronic) / Manual
Audio Input	1-channel audio in(JACK)
Alarm IN	2 Ch.
Alarm Out	1 Ch.
IR Range	IR Range of 20 Mtr.
Operating Temperature	-30°C~+60°C, Less than 90% RH
Power Consumption	22W
Weatherproof Standard	IP67 & IK10
Dimension	286mm x 119mm x 106mm
Weight	2.05kg
