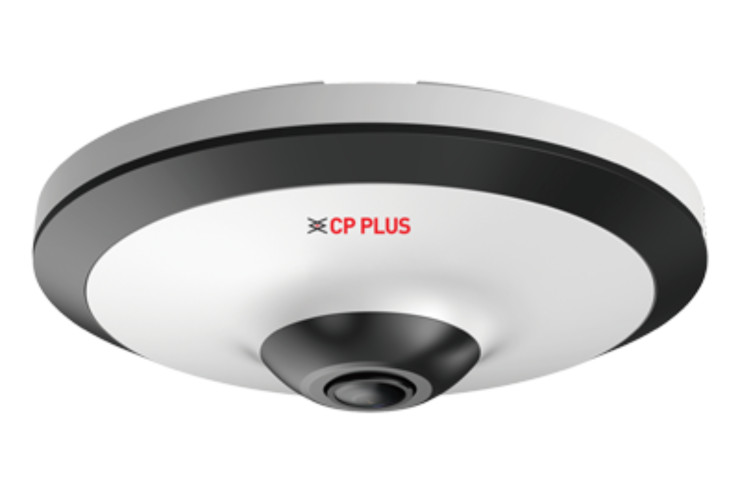

5MP WDR IR HDCVI FishEye Camera - 10 Mtr.

Category: Analog HD Camera

Sub Category: 5 MP

SKU: 35469

1/2.8” 5MP progressive scan CMOS (7.112 centimeters)
Max. 20fps@5MP
Panoramic fisheye lens
WDR(120dB), Day/Night (ICR), 2D/3D DNR, AWB, AGC, BLC, HLC
Support Built-in Mic
OSD Menu, control over coaxial cable, 2D/3D-DNR
IR Range of 10 Mtr., Smart IR

Image Sensor	1/2.8” 5MP progressive scan CMOS (7.112 centimeters)
Minimum Illumination	0.005Lux/F2.0 (Color), 30IRE,0lux IR on
Effective Pixels	2592(H)×1944(V), 5MP
BodyType	Fisheye
Shutter Speed	PAL:1/4s~1/100,000s, NTSC:1/3s~1/100,000s
White Balance	Auto / Manual
Lens	1.4mm
Gain Control (AGC)	Auto
Back Light Comp.	BLC / HLC / WDR(120dB)
Video Streaming	20fps@5MP,25/30fps@4MP
OSD	Multi-language
ICR	Auto (Electronic) / Manual
Audio	Built- in Mic
IR	IR Range of 10 Mtr., Smart IR
Operating Temperature	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Power Source	DC12V ±30%
Power Consumption	7.3W (IR ON)
Dimension	Φ126.2mm x 40.6mm(Φ4.97mm)
Weight	0.24kg
