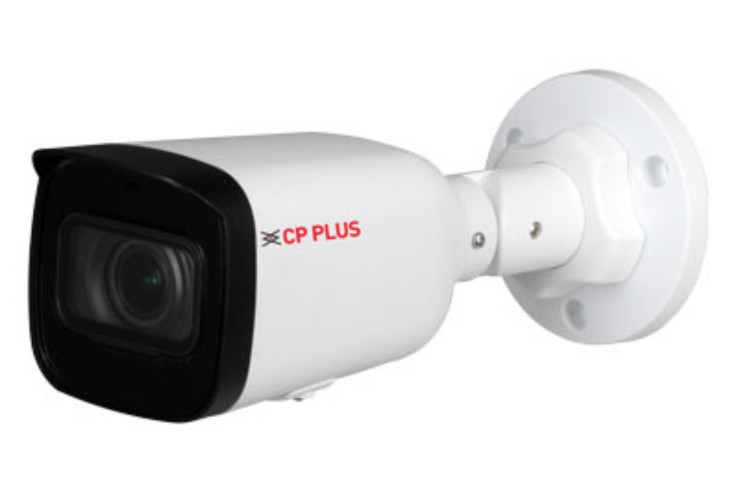

CP-USC-TC51ZL6-V3

5MP IR Bullet Camera - 60Mtr.

Category: Analog HD Camera

Sub Category: 5 MP

SKU: 35312

Image Sensor	1/2.7" 5MP Progressive Scan CMOS (0.9407cm)
Minimum Illumination	0.01 Lux/F1.6; 30IRE; 0 Lux IR on
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	AGC
ICR	Auto switch by ICR
Lens	2.7mm~12mm
Max Aperture	F1.6
Iris	Fixed iris
Lens Type	Motorized
Close Focus Distance	0.5 m
Mount Type	Φ14
S/N Ratio	>65dB
Privacy Mask	Off / On (8 area, rectangle)
DORI Distance	2.7mm: 69.0m (Detect) 27.6m(Observe) 13.8m(Recognize) 6.9m(Identify) 3.6mm: 191.6m (Detect) 76.64m(Observe) 38.32m(Recognize) 19.16m(Identify)
Back Light Compensation	BLC / HLC / DWDR
Video Streaming	CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Angle of View	Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55°
IR	IR Range of 60 Mtr., Smart IR
OSD	N/A
Casing	Metal front cover+ plastic main body+ plastic bracket
Operating Temperature	-30°C to +60°C (–22°F to +140°F)/ < 95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 6.6W (12V DC; IR on)
Weatherproof Standard	IP67
Dimension	243.5 mm × 90.7 mm × 90.7 mm
Weight	0.39 kg
