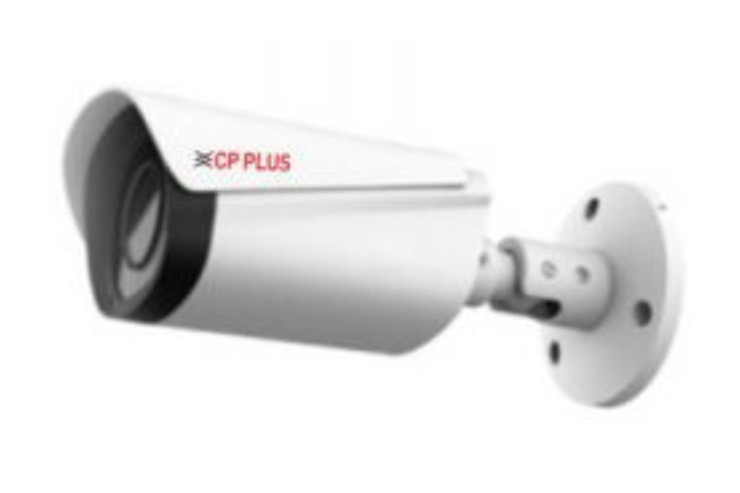

CP-USC-TA50ZL6C-DS

5MP Full HD WDR IR Cosmic Bullet Camera - 60Mtr.

Category: Analog HD Camera

Sub Category: 5 MP

SKU: 23154

Image Sensor	1/2.7" 5MP CMOS Image Sensor (6.858 centimeters)
Minimum Illumination	0.02Lux/F1.8, 30IRE, 0Lux IR on
Effective Pixels	2592(H) x 1944(V), 5MP
BodyType	Bullet
Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
White Balance	Auto / Manual
Lens	2.7-12mm Motorized lens
Gain Control (AGC)	Auto / Manual
Angle of View	H: 98°~34°
S/N Ratio	More than 65dB
Back Light Comp.	BLC / HLC / WDR(100dB)
Video Streaming	20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
OSD	Multi-language
Resolution	5MP (2592×1944)
ICR	Auto (ICR) / Manual
Audio	Built-in mic
IR Range	IR Range of 60 Mtr.
Operating Temperature	-40°C~+60°C / Less than 95%RH
Power Source	12V DC ±30%
Power Consumption	Max. 12W (12V DC, IR on)
Weatherproof Standard	IP67
Dimension	φ90.4mm×210mm (φ3.6mm)
Weight	0.55kg
