CP-USC-TA50ML3-S

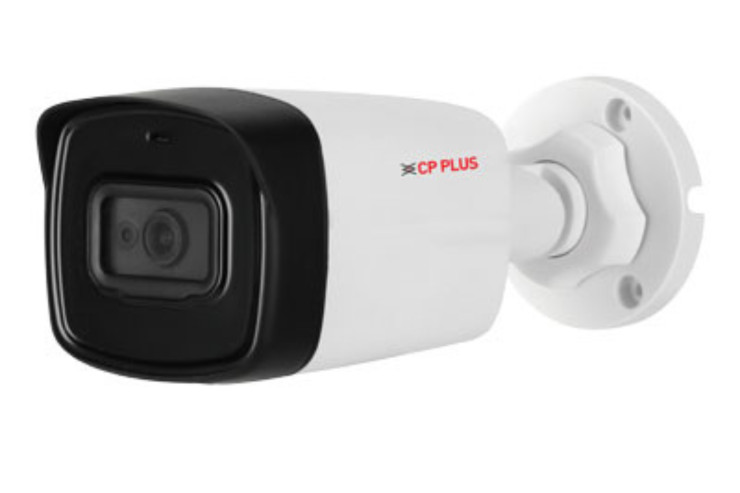

5MP IR Bullet Camera

Category: Analog HD Camera

Sub Category: 5 MP

SKU: 35469

Image Sensor	1/2.7” 5MP Progressive scan CMOS Image Sensor (0.9407 centimetres)
Minimum Illumination	0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Effective Pixels	2880 (H) × 1620 (V)
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto switch by ICR
Lens	3.6mm (2.8mm optional)
Max Aperture	F1.6
Gain Control (AGC)	Auto / Manual
ICR	Auto switch by ICR
Lens	3.6mm (2.8mm optional)
Max Aperture	F1.6
Auto Iris	Fixed iris
Lens Type	Fixed-focal
S/N Ratio	>65dB
DORI Distance	3.6mm: 80m (Detect) 32m (Observe) 16m (Recognize) 8m (Identify) 2.8mm: 63.6m (Detect) 25.4m (Observe) 12.7m (Recognize) 6.4m (Identify)
Back Light Compensation	BLC / HLC / DWDR
Video Streaming	CVI: PAL: 5M@25fps; 4M@25fps; 1080P@25fps; NTSC: 5M@25fps; 4M@30fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30fps TVI: PAL: 4M@25 fps; NTSC: 4M@30fps; CVBS: PAL: 960H; NTSC: 960H
Privacy Mask	Off/on (8 area, rectangle)
Angle of View	3.6mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
IR Range	IR Range of 30Mtr., Smart IR
Casing	Metal throughout the whole casing
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F) ; <95% (non-condensation)
Storage Temperature	-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 3.7W (12V DC, IR on)
Weatherproof Standard	IP67
Dimension	166.6mm×69.7mm×70.0mm
Weight	0.33kg
