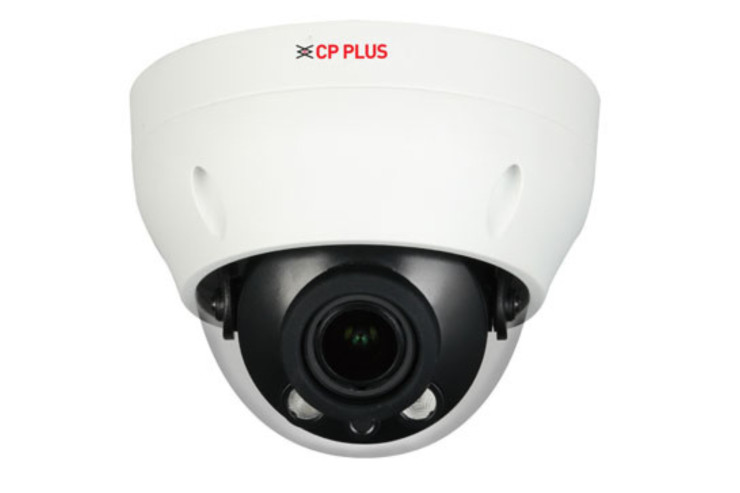

CP-USC-DC24FL4-V3

2.4MP IR Dome Camera - 40Mtr.

Category: Analog HD Camera

Sub Category: 2.4 MP

SKU: 13156

Image Sensor	1/2.7" 2.4MP PS CMOS (0.9407cm)
Minimum Illumination	0.04Lux/F1.85, 30IRE, 0Lux IR on
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto (ICR)/Manual
Lens	2.7mm~12mm Varifocal
Max Aperture	F1.8
Lens Type	Vari-Focal
Close Focus Distance	500mm ; 19.7''
Mount Type	Board-in
S/N Ratio	More than 65dB
DORI Distance	25m (Detect) 63m(Observe) 125m(Recognize) 250m(Identify)
Back Light Compensation	BLC / HLC / DWDR
Video Streaming	25/30fps@2.4MP, 25/30/50/60fps@720P
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
Angle of View	H: 106°~33° ; V: 56°~19°
IR	IR Range of 40 Mtr., Smart IR
OSD	Multi-language
Casing	Plastic
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Power Source	12V DC ±30%
Power Consumption	Max 3.5W (12V DC, IR on)
Weatherproof Standard	IP67
Dimension	Φ122mm×98.1mm
Weight	0.30kg
