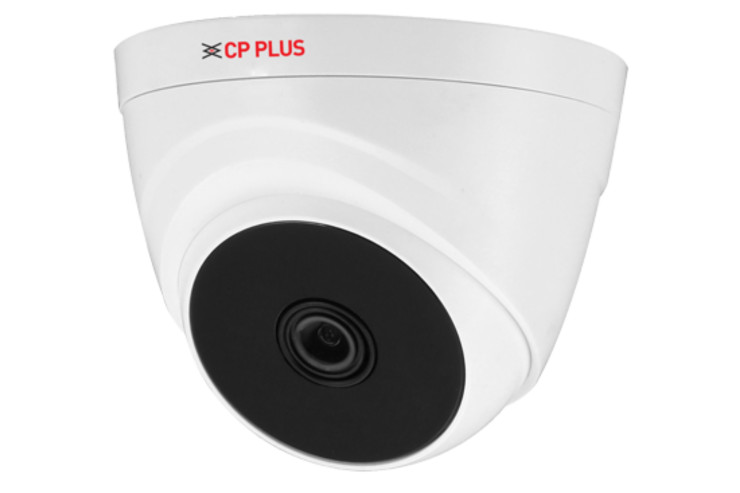

CP-USC-DC10PL2-V2

1MP Full HD IR Dome Camera - 20Mtr.

Category: Analog HD Camera

Sub Category: Analog 1MP

SKU: 31163

Image Sensor	1/4.5'', 1MP PS CMOS Image Sensor (0.5644 centimeters)
Minimum Illumination	0.04Lux/F2.3, 30 IRE, 0 Lux IR on
Shutter Speed	PAL: 1/25~1/100000s ; NTSC: 1/30~1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto (ICR)/Manual
Lens	2.8mm
Max Aperture	F2.3
Lens Type	Fixed lens
Close Focus Distance	2.8 mm: 0.5 m (1.6 ft)
Mount Type	M12
S/N Ratio	More than 65dB
DORI Distance	2.8 mm: detect 49.3m observe 19.7m Recognize 9.9m Identify 4.9m
Back Light Compensation	BLC/ DWDR
Video Streaming	25/30fps@720P
Video Output	CVI/TVI/AHD/CVBS by one BNC port
Angle of View	H: 82; V: 45°; D: 95°(2.8 mm)
IR	IR Range of 20 Mtr., Smart IR
OSD	N/A
Casing	Plastic
Operating Temperature	-40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 1.9 W (12 V DC, IR on)
Weatherproof Standard	N/A
Dimension	85.4 mm × 68.8 mm
Weight	0.09Kg.
