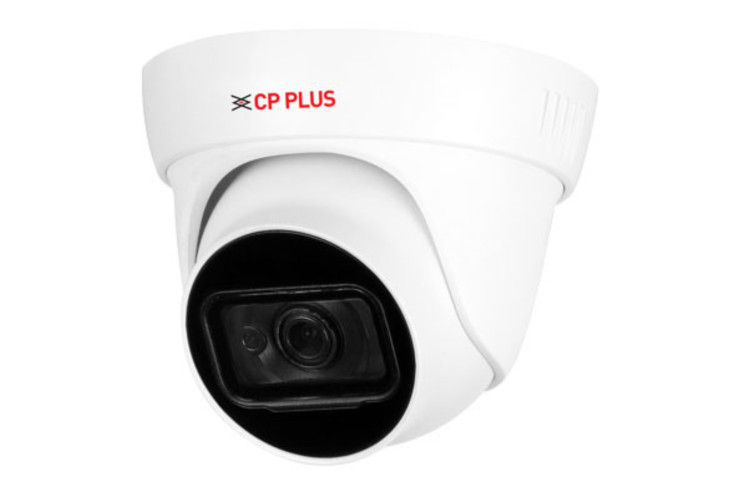

CP-USC-DA24L3C

2.4MP IR Dome Camera - 30Mtr.

Category: Analog HD Camera

Sub Category: 2.4 MP

SKU: 12436

Image Sensor	1/2.7" 2.4MP PS CMOS (0.9407 cm)
Minimum Illumination	0.02Lux/F1.9, 30IRE, 0Lux IR on
Effective Pixels	2.4MP
BodyType	Dome
Shutter Speed	PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
White Balance	Auto/Manual
AGC Control	Auto/Manual
Close Focus Distance	0.5m (1.64ft)/0.8m (2.95ft)
Lens	3.6mm (2.8mm optional)
Angle of View	3.6mm: 100°×84°×45° (diagonal × horizontal × vertical) 2.8mm: 119°×101°×54° (diagonal × horizontal × vertical)
S/N Ratio	>65dB
Max Aperture	F1.9
Back Light Comp.	BLC/ HLC/ DWDR
Auto Iris	Fixed-Iris
Video Streaming	CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H
Lens Type	Fixed-focal
DORI Distance	2.8mm: D:38.6m, O: 15.4m, R: 7.7m, I: 3.9m 3.6mm: D: 49.7m, O: 19.9m, R: 9.9m, I: 5m
OSD	Multi-language
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio	Built-in Mic
ICR	Auto switch by ICR
IR	IR Range of 30 Mtr.
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F); <95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 3.3W (12V DC, IR on)
Weatherproof Standard	IP67
Dimension	Φ97.0mm×85.8mm
Casing	Metal upper dome+plastic lower dome+plastic cover
Weight	0.22kg
