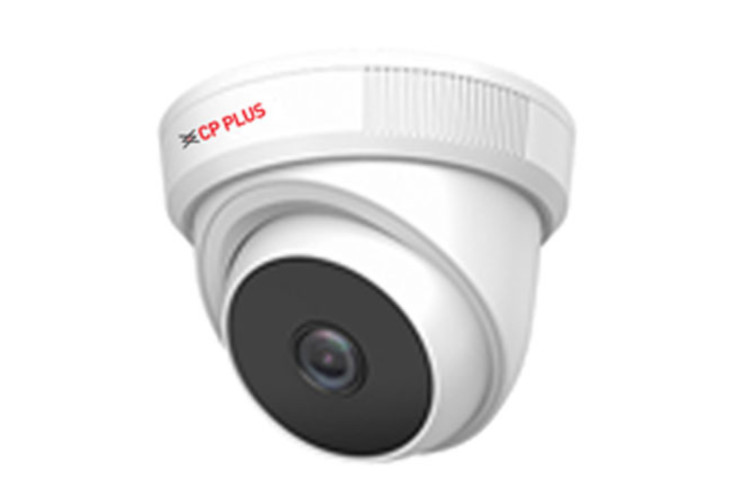

CP-URC-DC24PL2C-V3 - Supreme Security System

2.4MP IR Dome Camera - 20Mtr.

Category: Analog HD Camera

Sub Category: 2.4 MP

1/2.7” 2.4MP CMOS Image Sensor (0.9407 cm)
Max 25/30fps@2.4MP
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 20 Mtrs., Smart IR
OSD Menu, control over coaxial cable, 2D-DNR
HD, SD and Two Analog format Output switchable
Support Built-in Mic

Image Sensor	1/2.7” 2.4MP CMOS Image Sensor (0.9407 cm)
Minimum Illumination	0.04Lux/F2.0, 30IRE, 0Lux IR on
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto (ICR)/Manual
Lens	3.6mm (2.8mm optional)
Max Aperture	F2.0
Auto Iris	Fixed
Lens Type	Fixed lens/ Fixed Iris
S/N Ratio	More than 65dB
DORI Distance	2.8mm: D:46.9m; O:18.8m; R:9.4m; I:4.7m 3.6mm: D:53.7m; O:21.5m; R:10.7m; I:5.4m
Back Light Compensation	BLC / HLC / DWDR
Video Streaming	2.4MP@25/30fps, 25/30/50/60fps@720P
Angle of View	2.8mm; D:120° H:100° V:53° ; 3.6mm: D:99° H:83° V:44
Audio Channel	Built-in Mic
IR	IR Range of 20 Mtr., Smart IR
Casing	Plastic
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Power Source	12V DC ±30%
Power Consumption	Max 2.3W (12V DC, IR on)
Weatherproof Standard	N/A
Dimension	85mm x 85mm x 69mm
Weight	0.09Kg
