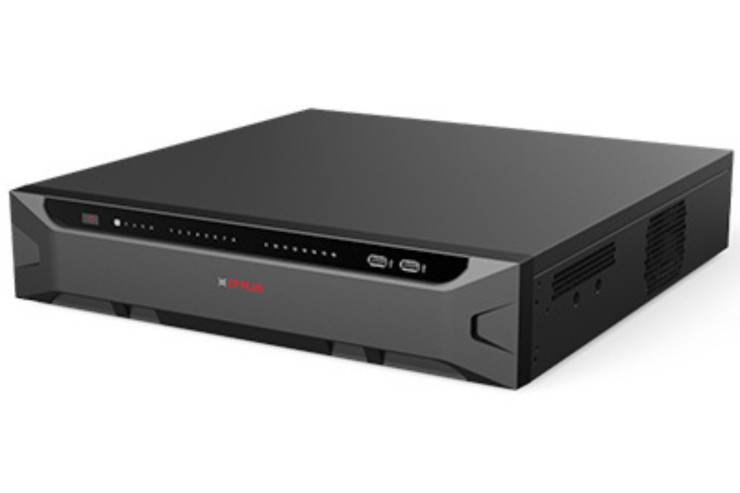

32Ch. 4K AI Network Video Recorder
| Processor | Industrial-grade processor |
|---|---|
| IP Camera Input | 32 Channel |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| Video Output | 2-channel VGA, 2-channel HDMI video output. Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Supports 4K display |
| Compression | H.265; Smart H.264+; H.264; MJPEG |
| Encode Strategy | Instastream |
| Decoding Capability | AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5- channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30fps AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4- channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30fps |
| AI by NVR | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Resolution | 32MP; 24MP; 16MP; 12MP; 8MP; 5MP; 4MP; 1080p; 720p; D1; CIF; QCIF |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Video Display Split | Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16 |
| Perimeter Performance AI by NVR (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by NVR (Number of Channels) | 1. 16-channel FD (by camera) + FR (by nvr), image stream: 16 face images/s 2. 2-channe FD (by nvr) + FR (by nvr), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD Plus by NVR | 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet |
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allow list |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behaviour of fan; cybersecurity exception |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| General Alarm | Motion detection; privacy masking; local alarm |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Disk Group | Support |
| Alarm Input | 16 channel |
| Alarm Output | 8 channels (1-channel 12 V 1 A output) |
| Hard Disk | 8 SATA ports, up to 16TB each. The maximum HDD capacity varies with environment temperature |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Smart Phone | iPhone, iPad, Android Phone |
| Interface Ports | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 2 HDMI, 2 VGA, 1 eSATA Port, 1 RS232, 2 RS485 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication) |
| Backup Mode | USB Device/Network |
| RAID | RAID 0/1/5/6/10 |
| Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search; Multicast; InstaOn cloud; Auto Registration, ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
| Ethernet | 2 x (10/100/1000 Mbps Ethernet port, RJ-45) |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH) |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Dimension | 439.9 mm × 457.9 mm x 89.0 mm |
| Weight | 6.4 kg |
