CP-UNP-S3021L10-D

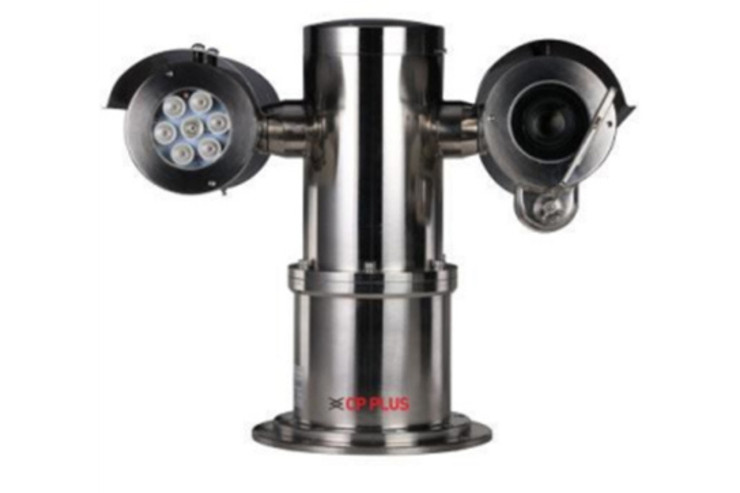

2MP 30x Explosion-proof IR Network PTZ Camera- 100 Mtr.

Category: Speed Dome(PTZ)

Sub Category: Network

SKU: 15389

1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters)
Max. 50/60fps@1080P
Powerful 30x Optical and 16x Digital zoom
WDR(120dB), 2D/3D-DNR, Defog, EIS, Day/Night (ICR), AGC, BLC, HLC
316L Stainless Steel Housing
Up to 256 presets, 5 Scan, 8 Tour
IR Range of 100 Mtr.
Max 40° /s pan speed, 360° endless pan rotation
Built-in 2/1 alarm in/out, IP68
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Image Sensor	1/2.8” CMOS PS (0.9071 centimeters)
Effective Pixels	1920(H) x 1080(V), 2 Megapixels
Resolution	2MP
S/N Ratio	More than 55dB
Minimum Illumination	Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
Focal Length	4.5mm~135mm
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Focus Control	Auto / Manual
Angle of View	H: 67.8° ~ 2.4°
Close Focus Distance	100mm~ 1000mm
AGC Control	Auto / Manual
Iris	Auto/Manual
Back Light Compensation	BLC / HLC / WDR(120dB)
Optical Zoom	30X
Digital Zoom	16x
Pan Travel	0°~360° endless, Pan Speed: 0.1° ~40° /s
Tilt Travel	-90° ~ 90°, Tilt Speed: 0.1° ~40° /
Manual Speed	Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s
Presets	256
Special Features	Defog, IR Range upto 100m, Up to 256 Presets, 5 Scan, 8 Tour
Preset Speed	Pan: 40° /s; Tilt: 40° /s
ROI	Support
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Day/Night: IR Cut Filter	Auto(ICR) / Color / B/W
Motion Detection	Support
Video Compression	H.265/H.264
Video Streaming	Main stream: 1080P(1 ~ 50/60fps), 1.3MP/720P(1 ~ 25/30fps), Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 1080P/1.3MP/720P(1 ~ 25/30fps)
Audio Compression	G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2
Audio Streaming	1/1 channel In/Out
Networking	RJ-45 (10Base-T/100Base-TX) , 1 RS485
IVS	Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map
Protocols	IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter, QoS, Bonjour,802.1x, ONVIF, PSIA, CGI
Alarm	2/1 channel In/Out
IR Range	IR Range upto 100 Mtr.
Smart Phone	iPhone, iPad, Android Phone
Memory Slot	Micro SD card 128GB
Operating Temperature	-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Weatherproof Standard	IP68
Dimension	Φ482mm×393mm×295mm
Power Source	AC220V(AC100V ~ 240V)
Power Consumption	40W, 75W (IR on, Heater On)
Weight	28.9kg
