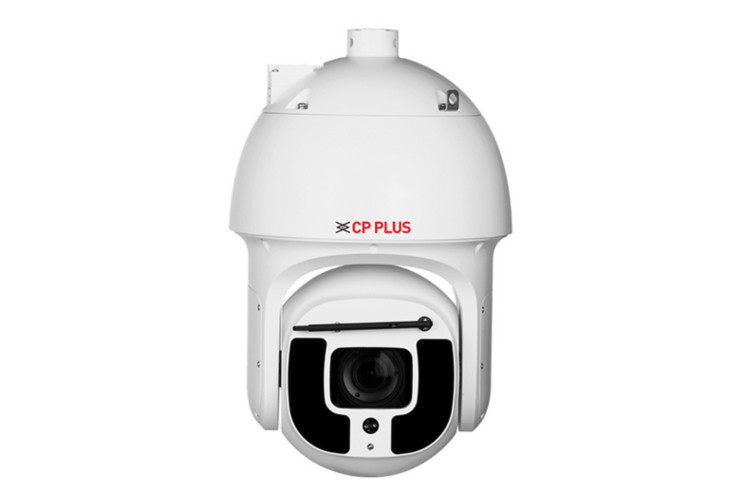

8MP WDR 40x IR Network PTZ Camera- 500 Mtr.
8MP WDR 40x IR Network PTZ Camera- 500 Mtr.
| Image Sensor | 1/1.8” 8MP PS CMOS (1.411 cm) |
|---|---|
| Effective Pixels | 3840 (H) x 2160 (V) |
| S/N Ratio | ≥55dB |
| RAM & ROM | 2 GB & 8 GB |
| Minimum Illumination | Color: 0.005 lux@F1.4; B/W: 0.0005 lux@F1.4; 0 lux@F1.4 (IR on) |
| Max Aperture | F1.4–F4.5 |
| Focal Length | 5.6 mm–223 mm |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural /Street lamp |
| Focus Control | Auto / Manual |
| Close Focus Distance | 0.5 m–2m |
| Iris Control | Auto; Manual |
| DORI Distance | 4400m (Detect), 1740m (Observe), 880m (Recognize), 440m (Identify) |
| Angle of View | H: 63.9° ~ 2.0°; V: 37.2° ~ 1.2° ; D: 71.2° ~ 2.4° |
| Shutter Speed | 1/1s~1/30,000s |
| Gain Control (AGC) | Auto/Manual |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| Optical Zoom | 40x |
| Digital Zoom | 16x |
| Pan Travel | 0°~360° endless, Pan Speed: 0.1° ~240° /s |
| Tilt Travel | -30° ~ +90°,auto flip 180°, Tilt Speed: 0.1° ~100°/sec |
| Manual Speed | Pan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s |
| Presets | 300 |
| Preset Speed | Pan: 240° /s; Tilt: 120° /s |
| Power-off Memory | Supports |
| Bit Rate | H264: 512 kbps–16384 kbps; H265: 256 kbps–10240 kbps |
| Special Features | Optical Defog, Up to 300 Presets, 5 Pattern, 8 Tour (up to 32 presets per tour), 5 Auto Scan |
| IR | IR Range upto 500 Mtr. |
| No of IR LEDs | 10 IR lights |
| Privacy Mask | Up to 24 areas, and up to 8 areas in the same view |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| ICR | Auto (ICR) / Color / B/W |
| Video Compression | H.265; Smart H.264+; H.264; MJPEG (Sub Stream 1) |
| Encode Strategy | Instastream |
| Analog Output | 1 BNC |
| Streaming Method | Unicast/Multicast |
| Resolution | 4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Video Streaming | Main stream: 4K/4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Audio Compression | G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723 |
| Smart Wiper | Supports |
| Motion Detection | Supports |
| Audio Input | 1 Ch. |
| ROI | Support |
| Audio Output | 1 Ch. |
| Auto Tracking | Support |
| Face Recognition | Support |
| Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction |
| Browser | IE7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari |
| RS-485 | 1 RS485 Port (Baud rate range: 1200 bps–9600bps) |
| Networking | RJ-45 (10/100Base-T) |
| Smart Detection | Object Abandoned; Object Missing |
| Perimeter Protection | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP; ONVIF (Profile S&G&T); CGI |
| Alarm IN | 7 channel In |
| Alarm Out | 2 channel Out |
| Smart Phone | iPhone, iPad, Android Phone |
| Micro SD | Micro SD card (512GB) |
| Storage | FTP |
| Weatherproof Standard | IP67; TVS 6000V lightning protection; surge protection; voltage transient protection |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Operating Humidity | ≤95% |
| Dimension | 415.6 mm × Φ262 mm |
| Power Source | DC36V/2.23A±25% ; HI-PoE |
| Power Consumption | Basic: 30 W; Max.: 48 W (illuminator + PTZ working) |
| Casing | Metal |
| Weight | 10 kg |
