CP-UNP-C1021L3G
Home
Products
CP-UNP-C1021L3G

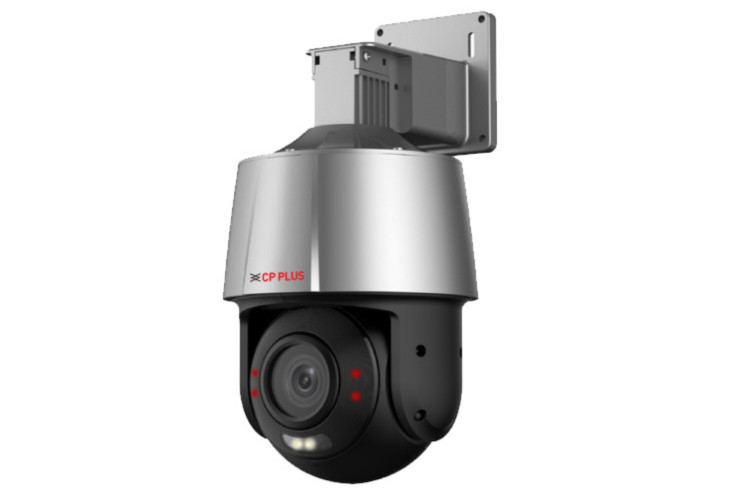

2MP Warm Light Full-color IR Network PTZ Camera
Add To Cart
Category:
Speed Dome(PTZ)
Sub Category:
Network
SKU:
12435
Share:
Description
Additional Information
Ratings
1/3” 2MP PS CMOS Image sensor (0.84667 cm)
Max. 25/30fps@2MP
Powerful 10x Optical zoom
DWDR, 2D/3D-DNR, Day/Night (ICR), AGC, BLC, HLC
Up to 300 Presets
IR Range of 30Mtr.
Support PoE, IP66
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/3” 2MP PS CMOS Image sensor (0.84667 cm)
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
S/N Ratio
≥55dB
Minimum Illumination
Color: 0.05 lux@F1.7 B/W: 0.005 lux@F1.7 0 lux (IR/warm light on)
Focal Length
2.8mm ~ 28 mm
White Balance
Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Focus Control
Auto/Semi-Auto/Manual
Angle of View
H: 90.7°–22.2°; V: 48.2°–12.6°; D: 107.6°–25.9°
Shutter Speed
1/3 s–1/100,000 s
AGC Control
Auto / Manual
Back Light Compensation
BLC / HLC / DWDR
Optical Zoom
10x
Pan Travel
Pan: 0° to 355°
DORI Distance
206.6m(Detect) 82.6m(Observe) 41.3m(Recognize) 20.7m(Identify)
Tilt Travel
Tilt: -15° to +90°
Manual Speed
Pan: 0.1°/s–26°/s Tilt: 0.1°/s–17.5°/s
Presets
300
Preset Speed
Pan: 26°/s; Tilt: 17.5°/s
Day/Night: IR Cut Filter
Auto (ICR) / Color / B/W
Video Compression
Instastream; H.265; H.264; H.264B; MJPEG (Sub Stream 1)
Video Streaming
Main stream: 1080P/1.3MP/720P (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30fps)
Motion Detection
Support
Audio Compression
G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723
Audio Streaming
1 channel (built-in Mic)/ 1 channel (built-in speaker)
Networking
RJ-45 (10/100 Base-T)
Event Trigger
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
IVS
Tripwire, Intrusion, Human Detection
Protocols
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP; TCP, ONVIF (Profile S&T); CGI
IR Range
IR Range of 30Mtr.
Operating Temperature
-30 °C to 60 °C (–22 °F to +140 °F)
Smart Phone
iPhone, iPad, Android Phone
Humidity
≤95%
Memory
FTP; Micro SD card (256 GB)
Weatherproof Standard
IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection
Dimension
271.7 mm × 165.5 mm × 140 mm
Power Source
12 VDC, 1.5 A (±10%) PoE (802.3af)
Power Consumption
Basic: 2.5 W Max.: 12.95 W (illuminator)
Weight
1.07 kg
