CP-UNC-VC41L5-VMDS
Home
Products
CP-UNC-VC41L5-VMDS

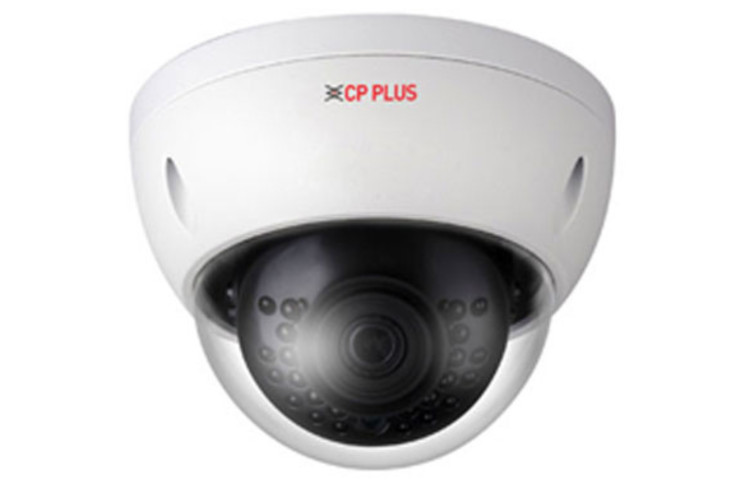

4MP WDR IR Vandal Dome Camera - 50Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
4 MP
SKU:
35469
Share:
Description
Additional Information
Ratings
1/2.7” 4Megapixel PS CMOS Image Sensor (0.9407cm)
Max. 4MP (2688×1520)@25/30fps
Instastream and H.264+ triple-stream encoding
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC
3.6mm Lens (2.8mm, 6mm Optional)
IR Range of 50 Mtrs, IP67, IK10, Micro SD Card, PoE
Support Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.7” 4Megapixel progressive CMOS (0.9407cm)
Minimum Illumination
0.005 Lux@F1.6
Effective Pixels
2688(H) x 1520(V)
Shutter Speed
Auto/Manual 1/3 s–1/100000 s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
3.6mm (2.8mm, 6mm optional)
Iris Type
Fixed aperture
Mount Type
M12
Max Aperture
F1.6
DORI Distance
3.6mm– 80m (Detect) 32m (Observe) 16.0m (Recognize) 8.0m (Identify) 2.8mm– 56.0m (Detect) 22.4m (Observe) 11.2m (Recognize) 5.6m (Identify) 6mm– 120.0m (Detect) 48.0m (Observe) 24.0m (Recognize) 12.0m (Identify)
Lens Type
Fixed Focal
Noise Reduction
3D-DNR
Gain Control (AGC)
Auto/Manual
Video Compression
H.265/H.264+/H.264/H.264H; H.264B; MJPEG
Encode Strategy
Instastream
Angle of View
3.6mm: Horizontal:84°; vertical: 45° ; diagonal: 100° ; 2.8mm: Horizontal:103°; vertical: 55°; diagonal: 122° ; 6mm: Horizontal:52°; vertical: 28°; diagonal: 61°
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main stream (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25/30 fps) third stream (1280 × 720@1–25/30 fps)
Resolution
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection
OFF/ON (4 areas, rectangular)
Privacy Mask
4 areas
ICR
ICR auto switch
ROI
Yes (4 areas)
Mirror
Support
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Audio Compression
G.711a/ G.711Mu/ AAC/ G.726
Alarm IN
1 channels in: 5mA 3V–5V DC
Alarm Output
1 channel Out: 300mA 12VDC
Bit Rate
H.264: 3 Kbps–6144 Kbps; H.265: 3 Kbps–6144 Kbps
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SSL; SNMP ; ONVIF (Profile S/Profile G/Profile T); CGI; InstaOn; Milestone; Genetec
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
SDK and API
Support
Smart Detection
Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Ethernet
RJ-45 (10/100Base-T)
Event Trigger
Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
User Account
20 users
Smart Phone
iPhone, iPad, Android Phone
IR
IR Range of 50 Mtr.
Micro SD
FTP, Mirco SD card 256GB, NAS
Browser
IE IE8, IE9, IE11, Google Chrome, Firefox
Operating Temperature
-40°C to +60°C (-40°F to +140°F)/ less than≤95%
Power Source
12V DC/PoE
Power Consumption
<7.3W
Weatherproof Standard
IP67 & IK10
Casing
Metal + Plastic
Dimension
81 mm × Φ109.9 mm
Weight
378 g
