CP-UNC-TT41L3-VM
Home
Products
CP-UNC-TT41L3-VM

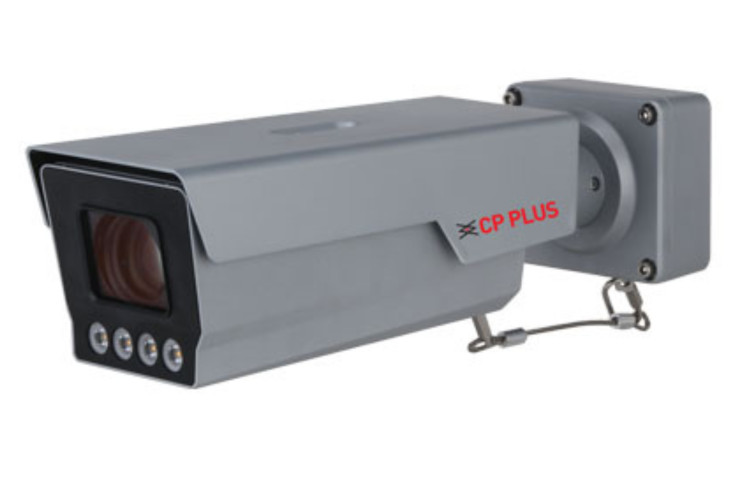

4MP IR AI Enforcement Camera
Add To Cart
Category:
Network Camera
Sub Category:
4 MP
SKU:
13156
Share:
Description
Additional Information
Ratings
1/1.8" 4 MP starlight CMOS sensor (1.411 cm)
H.265 and H.264 dual codec
Maximum Resolution: 2688 × 1520@25/30fps
Built-in 10mm~50mm lens
The maximum illumination distance is 30 Mtr
IP67, IK10 Rated
Image Sensor
1/1.8'' CMOS (1.411 cm)
Processor
High-performance embedded processor
Shutter Speed
Auto/Manual 1/50 s–1/100,000 s
Iris
Fixed iris/manual iris/auto iris/P iris
Frame Rate
Main stream (2688 × 1520@25/30fps), (1920 x 1080@50/60fps) Sub stream (1600 × 1200@25/30fps)
S/N Ratio
>56dB
Resolution
4M (2688 × 1520)/1080P (1920 × 1080)/UXGA (1600 × 1200)/720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288)
Back Light Compensation
(Auto BLC/ HLC/ WDR (140dB)
Lens
10mm–50mm Motorized
Max Aperture
Max. F1.33
Video Compression
H.265; H.264M; H.264H; MJPEG
Angle of View
Horizontal: 9.4°–40.8° Vertical: 5.4°–22.9° Diagonal: 10.7°–46.9°
Bit Rate
H.264: 32kbps–32767kbps; H.265: 32kbps–32767kbps; MJPEG: 512kbps–32767kbps
White Balance
Auto; Manual; Outdoor; Natural; Street Lamp; Partial white balance
Audio Input
1 Ch.
Audio Output
1 Ch.
Alarm IN
3 channels
Alarm Out
2 channels. 1 for relay, and 1 for optocoupler
ANPR
Adopts CP Plus developed algorithms to recognize license plate numbers and letters
Vehicle Logo Recognizing
Acura; Alfaromeo; Ashok leyland; Astonmartin; Audi; Baic; Bently; Benz; BMW; Buick; BYD; Cadillac; Chery; Chevrolet; Chrysler; Citroen; Dacia; Daihatsu; Datsun; Dodge; DS; Ferrari; Fiat; Force; Ford; Foton; Geely; GMC; Greatwall; Hino; Honda; Hyundai; Infiniti; Isuzu; Iveco; Jac; Jaguar; Jeep; Kia; Kinglong; Land; Lexus; Lifan; Lincoln; Mahindra; MAN; Maserati; Mazda; Mercury; MG; Mini; Mitsubishi; Nissan; Opel; Peugeot; Porsche; Renault; Rollsroyce; Saab; Scania; Seat; Skoda; Smart; Subaru; Suzuki; Tata; Tesla; Toyota; UD; Volkswagen; Volvo
SDK and API
Yes
Alarm Event
Storage full, storage error, external alarm, no storage space, license plate blocklist, illegal access, and security fault
IR
23 m–30 m (75.46 ft–98.43 ft) (adjustable brightness)
Micro SD
1, supports maximum 256GB SD card local storage
Ethernet
1 × RJ-45 Ethernet port, 10/100/1000 M network transmission
Weatherproof Standard
IP67 & IK10
Operating Temperature
-40°C to +65°C (−40°F to +149°F)
Humidity
10%–90%
Storage Temperature
-40 °C to +65 °C (–40 °F to +149 °F)
Power Source
12–36 VDC, PoE
Power Consumption
≤ 13W
Dimension
466.4 mm × 135.8 mm × 134.1 mm (L × W × H)
Weight
3.9 kg
