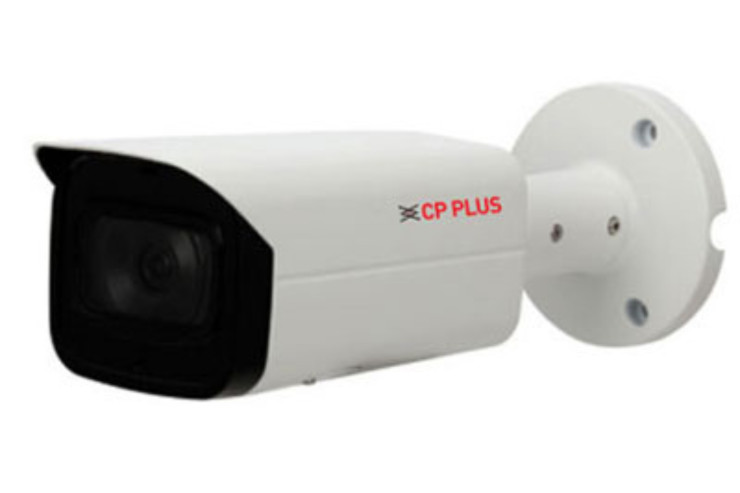

CP-UNC-TD41L8-MD

4MP WDR IR Network Bullet Camera - 80Mtr.

Category: Network Camera

Sub Category: 4 MP

SKU: 13156

Image Sensor	1/3” 4MP Progressive scan CMOS (0.84667cm)
Minimum Illumination	0.03Lux/F1.9( Color,1/3s,30IRE) 0.2Lux/F1.9( Color,1/30s,30IRE) 0Lux/F1.9(IR on)
Effective Pixels	2688(H) x 1520(V)
BodyType	Bullet
Shutter Speed	Auto/Manual, 1/3~1/100000s
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Lens	3.6mm (6mm, 8mm, 12mm optional)
Gain Control (AGC)	Auto/Manual
Video Compression	Instastream/H.265/H.264+/H.264
Back Light Comp.	BLC/ HLC/ WDR(120dB)
Video Streaming	Main Stream: 4MP(1~25/30fps), Sub Stream: D1(1~25/30fps), Third Stream: 1080P(1~14/4fps)
Digital Zoom	16x
Resolution	4MP(2688×1520)/3MP(2304×1296)/ 1080P(1920×1080)/1.3MP(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Motion Detection	Off / On (4 Zone, Rectangle)
Privacy Mask	Off / On (4 Area, Rectangle)
ICR	Auto(ICR)/Color/B/W
ROI	Off / On (4 Zone)
Bit Rate	H.264: 192K ~ 10240Kbps , H.265: 80K ~ 8192Kbps
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP, ONVIF, PSIA, CGI
Smart Detection	Tripwire, Intrusion, Object Abandoned/Missing, Face Detection
Ethernet	RJ-45 (10/100Base-T)
User Account	20 Users
Smart Phone	iPhone, iPad, Android Phone
IR Range	IR Range of 80 Mtr.
Micro SD	Micro SD card 512GB
Operating Temperature	-40°C~+60°C , Less than 95%RH
Power Source	DC12V, PoE(802.3af)
Power Consumption	<12W
Weatherproof Standard	IP67 & IK10
Dimension	244.1mm×79mm×75.9mm
Casing	Metal
Weight	0.84kg
