CP-UNC-TB21L3-MDS
Home
Products
CP-UNC-TB21L3-MDS

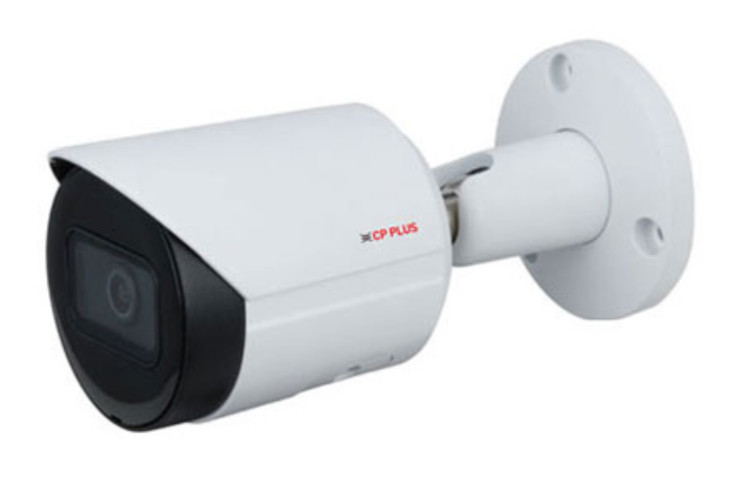

2MP Full HD WDR IR Network Bullet Camera - 30Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
35469
Share:
Description
Additional Information
Ratings
1/2.8” 2MP CMOS Image Sensor (0.9071 centimeters)
Max. 25/30fps@2MP (1920×1080)
Instastream, H.265 and H.264+ Stream coding
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 30 Mtrs, IP67, Micro SD Card, PoE
Support Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2MP Progressive scan CMOS (0.9071 centimeters)
Minimum Illumination
0.002 Lux @F1.6
Effective Pixels
1920(H) x 1080(V)
Shutter Speed
Auto/Manual 1/3 s–1/100000 s
S/N Ratio
>56dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
3.6mm fixed lens (2.8mm optional)
Gain Control (AGC)
Auto/Manual
Video Compression
Instastream; H.265; H.264+; H.264; H.264B; MJPEG (only supported by sub stream)
Angle of View
2.8mm: Horizontal:106° Vertical: 56° Diagonal: 126° , 3.6mm: Horizontal:87° Vertical: 46° Diagonal: 104°
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main Stream: (1920 × 1080@25 fps) Sub Stream: (704 × 576@25 fps), (704 × 480@30 fps)
Resolution
1080P (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Third Streaming* (Optional)
Main Stream: 1080P(1 ~ 25/30fps), Sub Stream: D1(1-25/30fps), Third stream: 704 × 480 (1 fps -25/30fps)
Motion Detection
OFF/ON (4 areas, rectangular)
Privacy Mask
4 areas
ICR
ICR switch
ROI
Yes (4 areas)
Bit Rate
H.264: 32 kbps–6144 kbps , H.265: 12 kbps–6144 kbps
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP, ONVIF (Profile S/Profile G); CGI; Milestone; Genetec
Smart Detection
Tripwire, Intrusion
Ethernet
RJ-45 (10/100Base-T)
Event Trigger
Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
User Account
20 Users
IR
IR Range of 30 Mtr., Smart IR
Smart Phone
iPhone, iPad, Android Phone
Micro SD
FTP; SFTP; Micro SD card (512GB); NAS
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Operating Temperature
-40°C to +60°C (-40°F to +140°F)
Humidity
≤95%
Power Source
12V DC/PoE
Power Consumption
< 4.9W
Weatherproof Standard
IP67
Casing
Metal
Dimension
166.2 mm × Φ70 mm
Weight
0.48 kg
