CP-UNC-DC41L5C-MDS

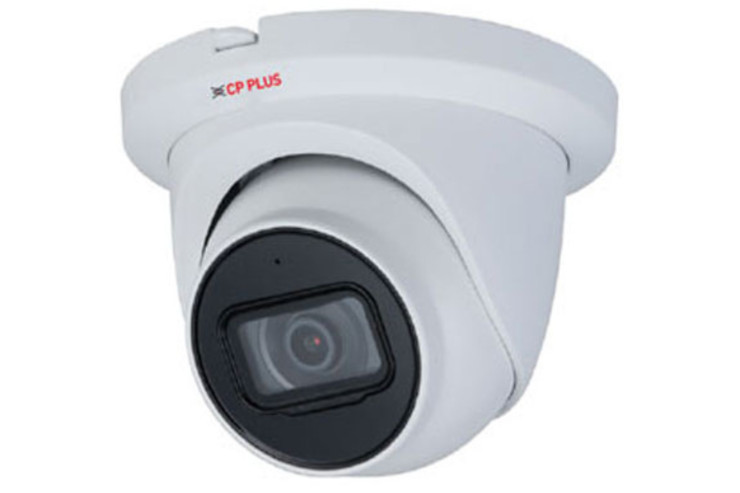

4MP Full HD WDR IR Dome Camera - 50Mtr.

Category: Network Camera

Sub Category: 4 MP

SKU: 35469

Image Sensor	1/2.7” 4Megapixel progressive scan CMOS (6.858 centimeters)
Minimum Illumination	0.005 Lux@F1.6
Effective Pixels	2688 (H) ×1520 (V)
BodyType	Dome
Shutter Speed	Auto/Manual 1/3 s–1/100000 s
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Lens	3.6mm (2.8mm, 6mm optional)
Gain Control (AGC)	Auto/Manual
Video Compression	H.265+/H.265/H.264+/H.264/H.264H; H.264B; MJPEG
Back Light Comp.	BLC / HLC / WDR(120dB)
Video Streaming	Main stream (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25/30 fps) third stream (1280 × 720@1–25/30 fps)
Resolution	4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 areas
ICR	ICR auto switch
ROI	Yes (4 areas)
Audio	Built-in Mic
Protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; ONVIF (Profile S/Profile G); CGI; P2P
Smart Detection	Tripwire; intrusion (Recognition of human and vehicle)
Ethernet	RJ-45 (10/100Base-T)
User Account	20 Users
Smart Phone	iPhone, iPad, Android Phone
IR Range	IR Range of 50 Mtr.
Micro SD	FTP, Mirco SD card 256GB, NAS
Operating Temperature	-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Power Source	12V DC/PoE
Power Consumption	<7.7W
Weatherproof Standard	IP67
Dimension	101 mm × Φ110 mm
Weight	420g
