CP-UNC-DA21L2-GP-V2

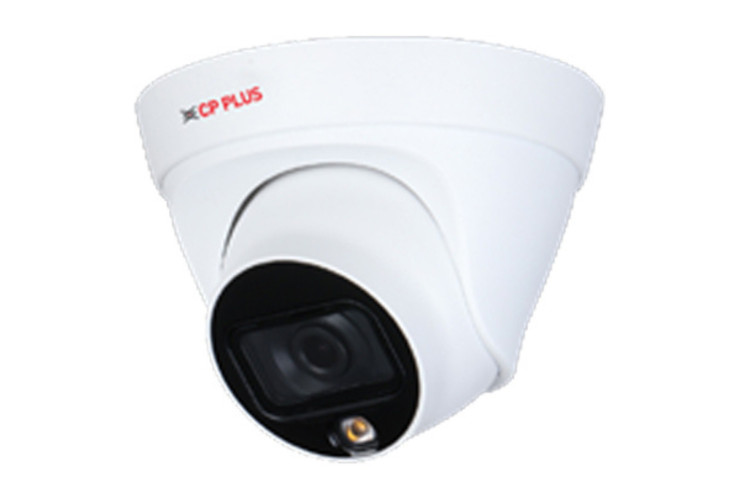

2MP Full-color Guard+ Network IR Dome Camera

Category: Guard+

Sub Category: Network

SKU: 13156

1/2.8” 2Megapixel PS CMOS Image Sensor (7.112 cm)
Max. 2MP(1920 x 1080)@25/30fps
Instastream and Smart H.264+ dual-stream encoding
DWDR, Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
Support IP67, PoE
Built-in efficient LED illuminator, and the max. illumination distance is 20 Mtr.
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Image Sensor	1/2.8” 2Megapixel PS CMOS Image Sensor (7.112 cm)
Minimum Illumination	0.005Lux@F1.6
Effective Pixels	1920 (H) x 1080 (V)
Lens	3.6mm (2.8mm Optional)
Frame Rate	Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Gain Control (AGC)	Auto/Manual
ICR	Color/B/W
Privacy Mask	4 Area
S/N Ratio	>56dB
Shutter Speed	Auto/Manual, 1/3~1/100000s
Angle of View	3.6mm: Horizontal: 88°; Vertical: 46°; Diagonal: 104° 2.8mm: Horizontal: 106°; Vertical: 56°; Diagonal: 127°
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast, ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec
ROI	Yes (4 areas)
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Motion Detection	Motion Detection
Back Light Compensation	BLC / HLC / DWDR
Video Compression	Instastream/ H.265/ Smart H.264+/ H.264/ H.264B/ MJPEG (only supported by the sub stream)
Bit Rate	H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6400 Kbps
Illumination Distance	Illumination Distance 20 Mtr.
Operating Temperature	-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Smart Phone	iPhone, iPad, Android Phone
Power Source	12V DC/PoE (802.3af)
Power Consumption	1.4W (12V DC); 2.2W (PoE)
Ethernet	RJ-45 (10/100Base-T)
Casing	Metal + Plastic
Dimension	85.5 mm × Φ109 mm (3.4mm)
Weatherproof Standard	IP67
Weight	0.24kg
